Parts Location

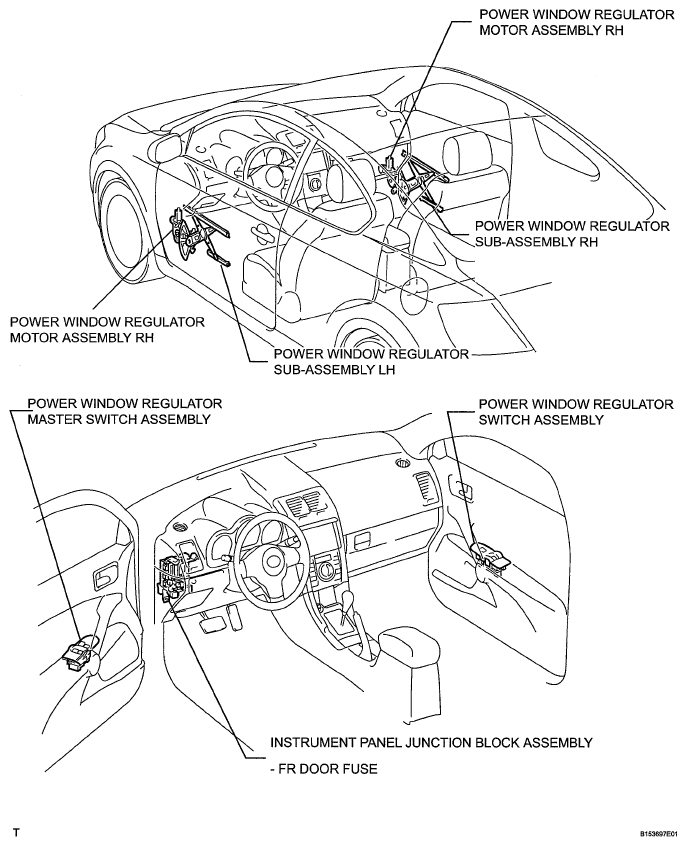

Fig 1: Identifying Power Window Control System Parts Location (W/O Jam Protection Function)
G05541753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
