Disassembly

AIR CONDITIONING: HEATER CONTROL ASSEMBLY: DISASSEMBLY

DISASSEMBLY

1. REMOVE CENTER CLUSTER MODULE KNOB

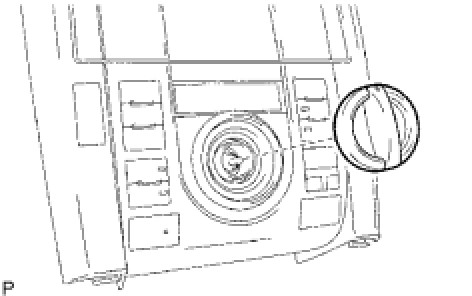

(a) Remove the center cluster module knob.
2. REMOVE HEATER CONTROL BASE LOWER

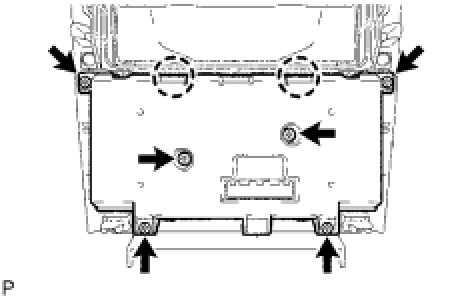

(a) Remove the 6 screws.

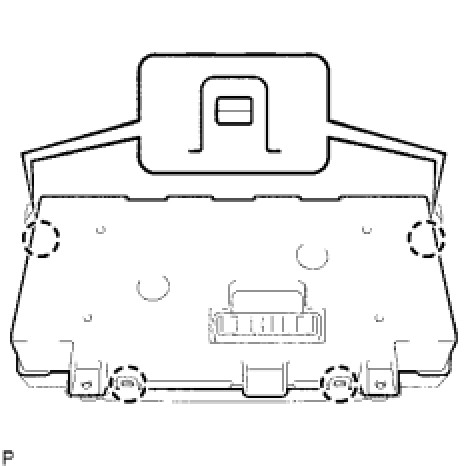

(b) Detach the 2 claws and remove the heater control panel.






(c) Detach the 4 claws and remove the heater control base lower.
3. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

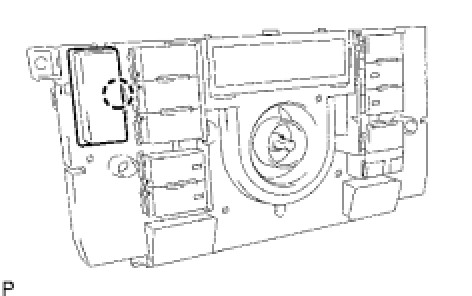

(a) Detach the claw and remove the knob.

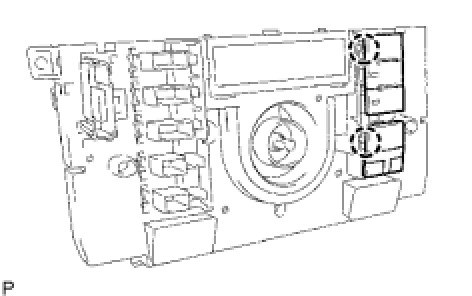

(b) Detach the 2 claws and remove the knob.

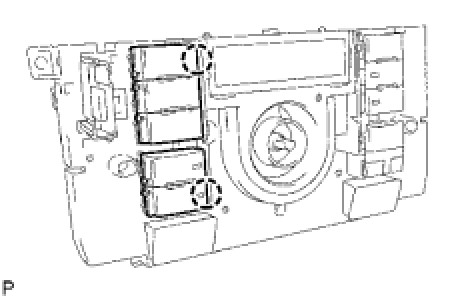

(c) Release the 2 claws and remove the knob.
