System Specifications

CYLINDER HEAD






Torque: 78.5 Nm (800 kgf-cm, 58 ft-lbf)






Mark the front of the cylinder head bolts with paint.
Retighten the cylinder head bolts by 90° as shown in the illustration.
Check that the paint mark is now at a 90° angle to the front.

BOLT RE-USABILITY

Standard bolt length:
161.3 to 162.7 mm (6.350 to 6.406 in.)
Maximum bolt length:
164.2 mm (6.465 in.)

SURFACE VARIATION - WARPAGE

Maximum warpage:
0.08 mm (0.0032 in.)

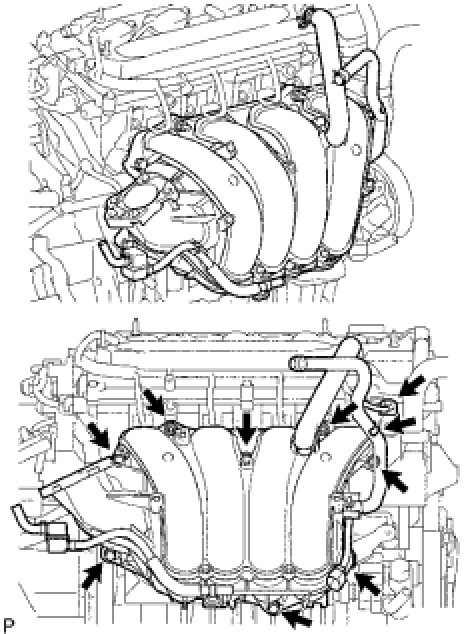

INTAKE MANIFOLD






Torque: 30 Nm (305 kgf-cm, 22 ft-lbf)

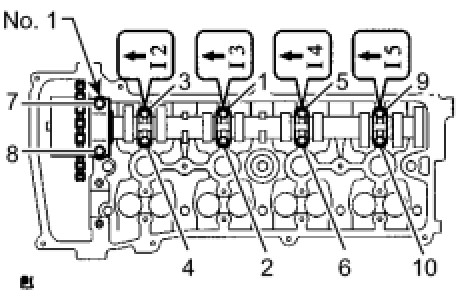

CAMSHAFT







Torque: 29.5 Nm (301 kgf-cm, 22 ft-lbf)
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)

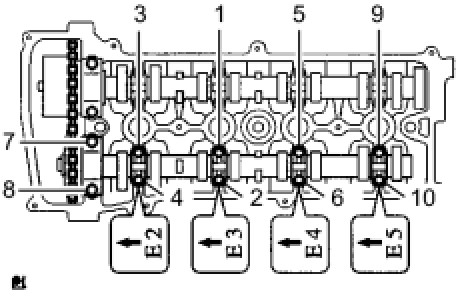

No. 2 CAMSHAFT






Torque: 29.5 Nm (301 kgf-cm, 22 ft-lbf)
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)

CAMSHAFT PULLEY/GEAR

Torque: 54 Nm (551 kgf-cm, 40 ft-lbf)

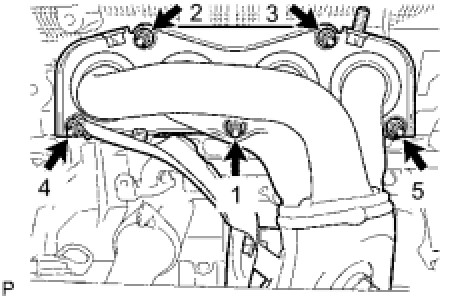

EXHAUST MANIFOLD






Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)
