Power Window Control System (w/ Jam Protection Function)

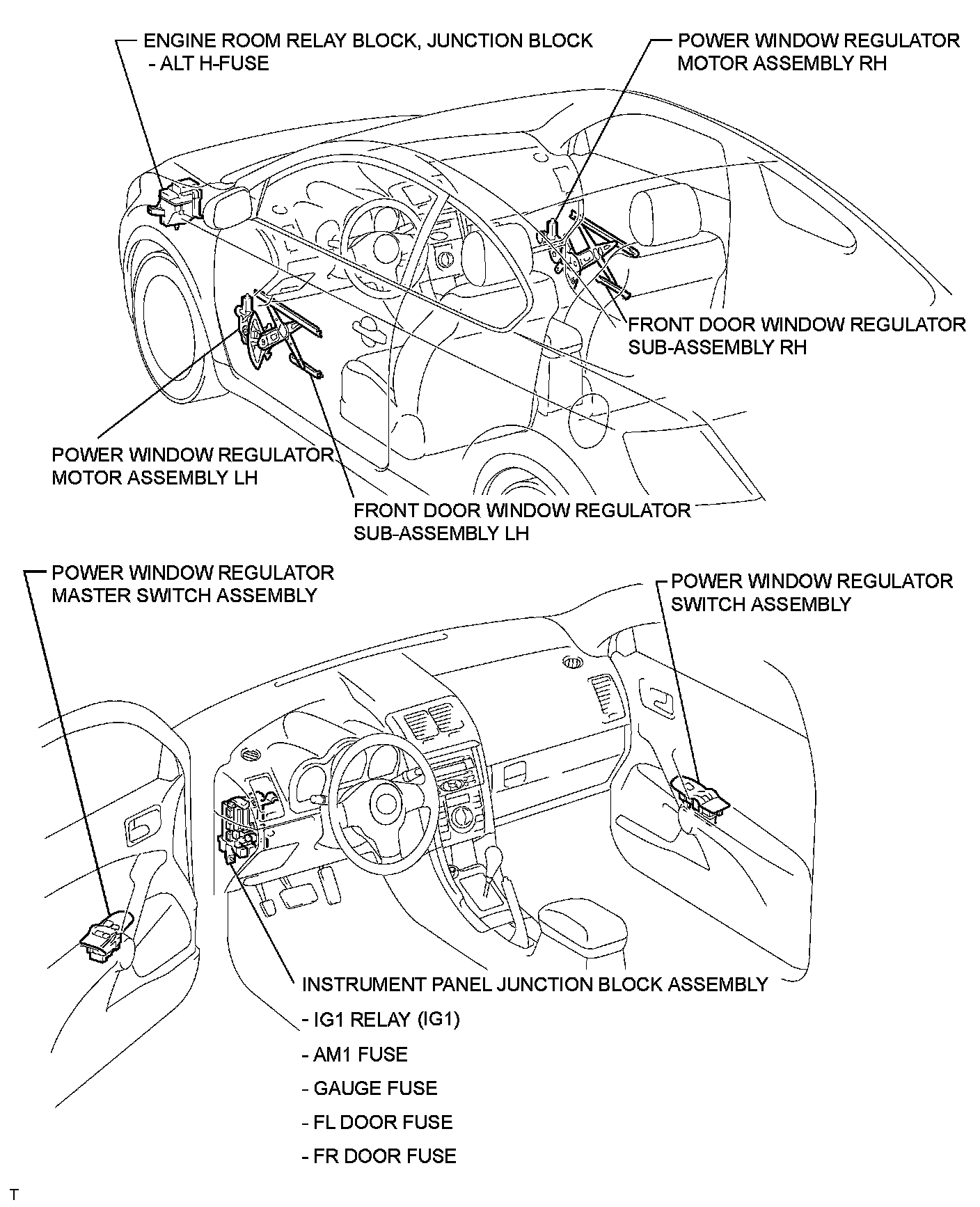

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/ Jam Protection Function): PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
