Speed Sensor: Components

Fig 1: Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
G05388023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

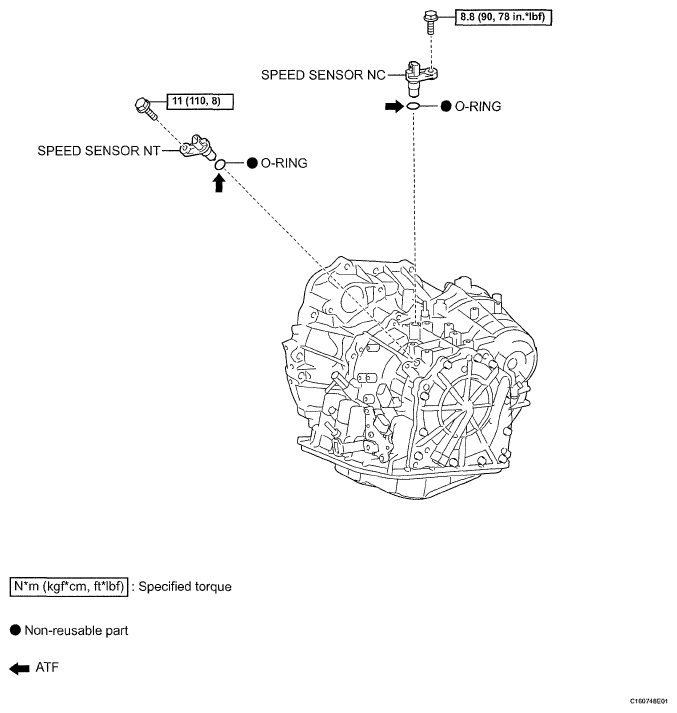

Fig 2: Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
G05388024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
