UNDERDRIVE Planetary Gear: Components

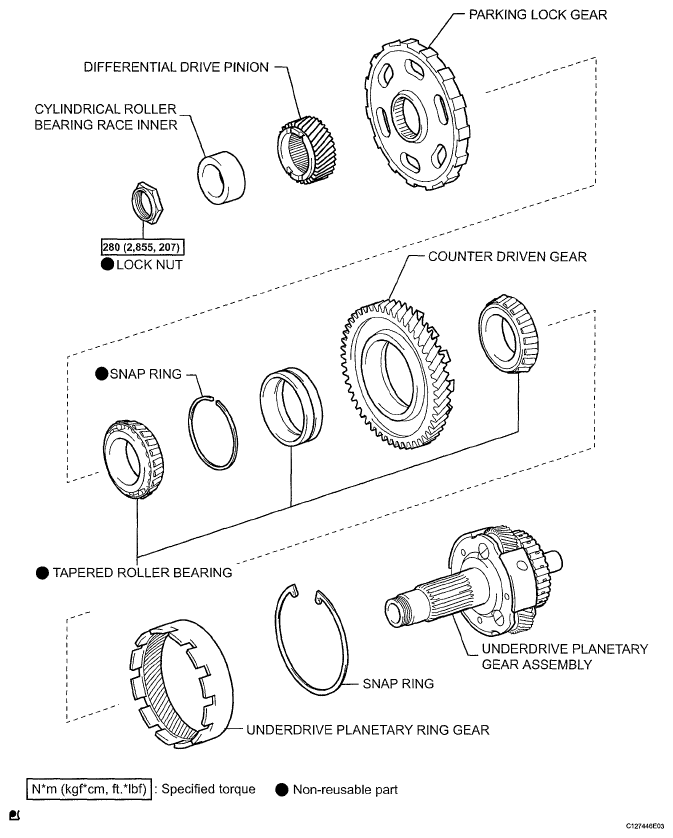

Fig 1: Underdrive Planetary Gear Replacement Components With Torque Specifications
G05388563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
