AIR CONDITIONING: AIR CONDITIONING PANEL ASSEMBLY: INSTALLATION

INSTALLATION

1. CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY

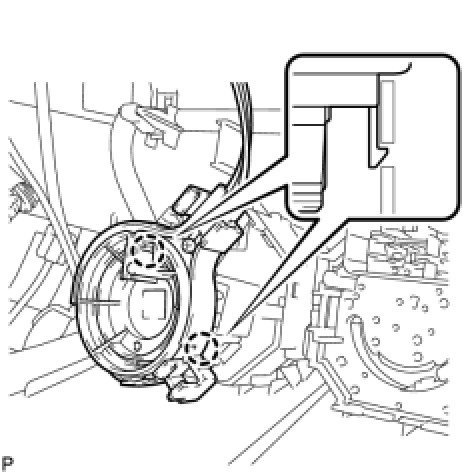

(a) Engage the 2 claws and connect the air mix damper control cable.
2. CONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY

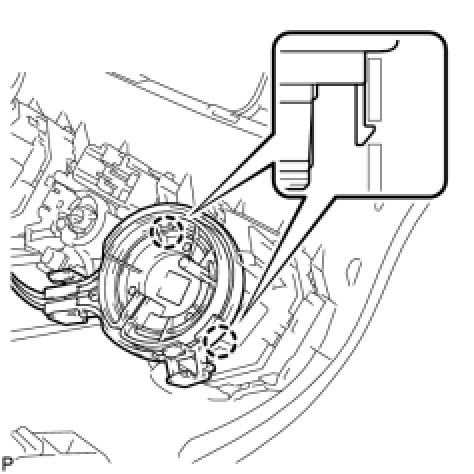

(a) Engage the 2 claws and connect the air inlet damper control cable.
3. CONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY

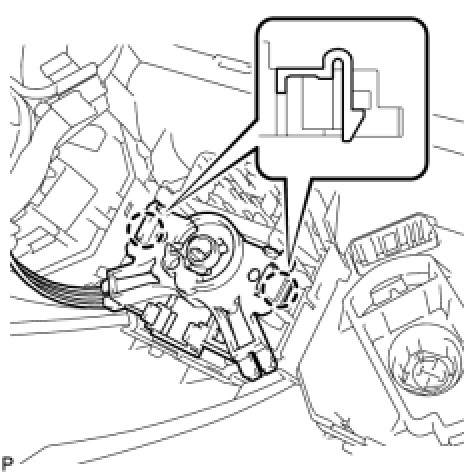

(a) Engage the 2 claws and connect the defroster damper control cable.
4. INSTALL AIR CONDITIONING PANEL ASSEMBLY

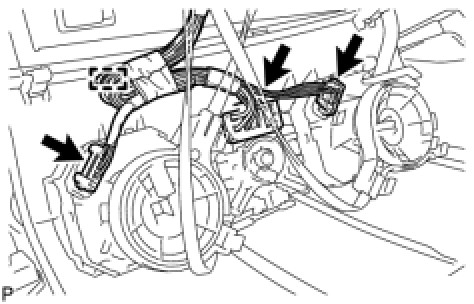

(a) Connect the 3 connectors and clamp.

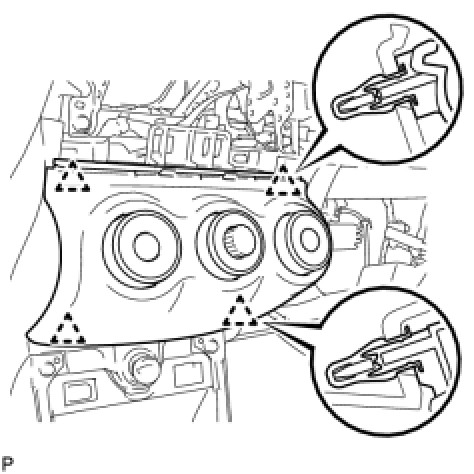

(b) Engage the 4 clips and install the air conditioning panel.
5. INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY Installation
