Intake Manifold

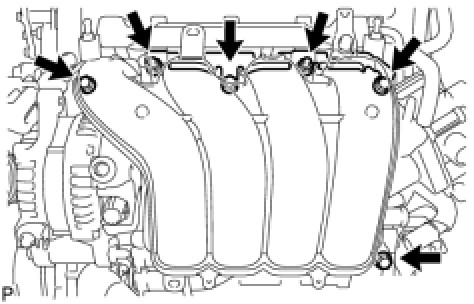

INTAKE MANIFOLD





Torque: 28 Nm (286 kgf-cm, 21 ft-lbf)

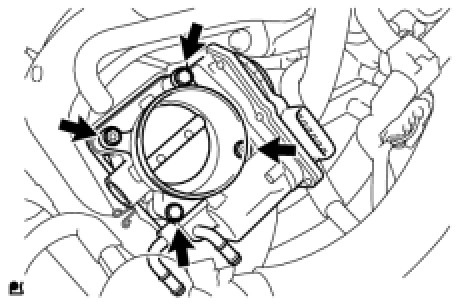

THROTTLE BODY ASSEMBLY





Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
