Timing Cover

TIMING CHAIN OR BELT COVER SUB-ASSEMBLY

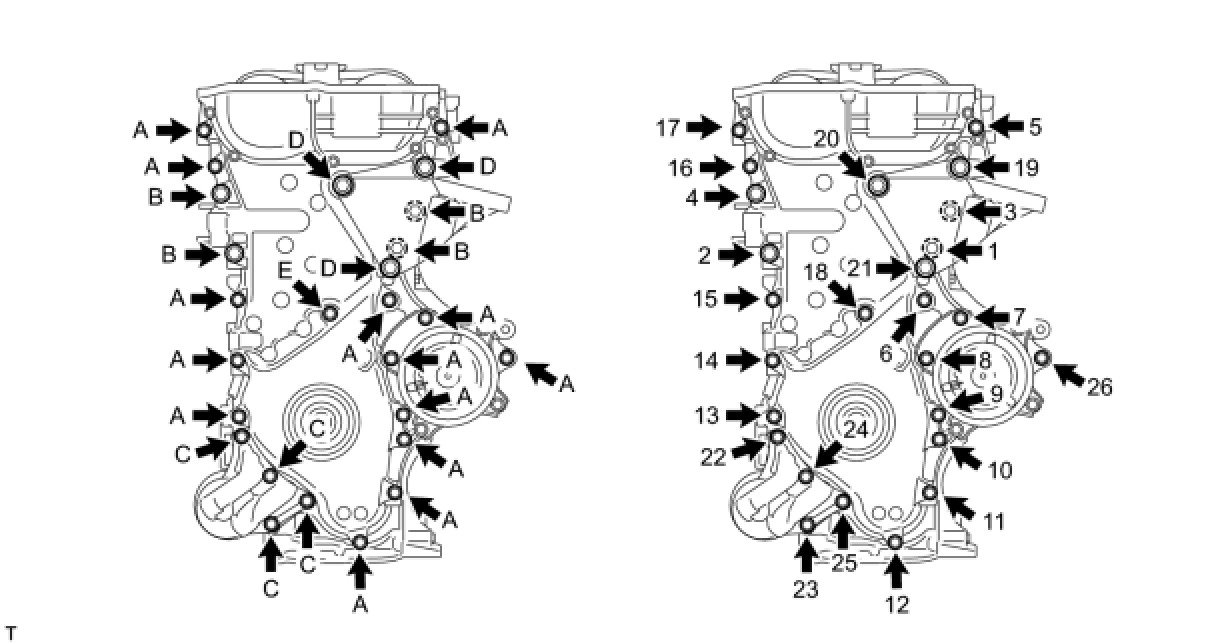

Bolt A and C - Torque: 26 Nm (260 kgf-cm, 19* ft-lbf)
Bolt B and D - Torque: 51 Nm (520 kgf-cm, 38 ft-lbf)
Bolt E - Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

Bolt length:
