Crankshaft Position Sensor: Testing and Inspection

2AZ-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSPECTION

CRANKSHAFT POSITION SENSOR: INSPECTION





1. INSPECT CRANKSHAFT POSITION SENSOR

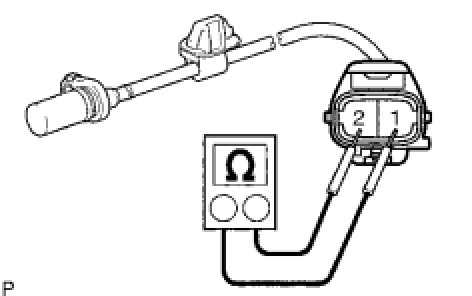

(a) Measure the resistance of the sensor.
Standard resistance:





NOTICE: Cold and Hot mean the temperature of the coils themselves. Cold is from -10 to 50°C (14 to 122°F) and Hot is from 50 to 100°C (122 to 212°F).
If the result is not as specified, replace the crankshaft position sensor.
