Vane Pump: Components

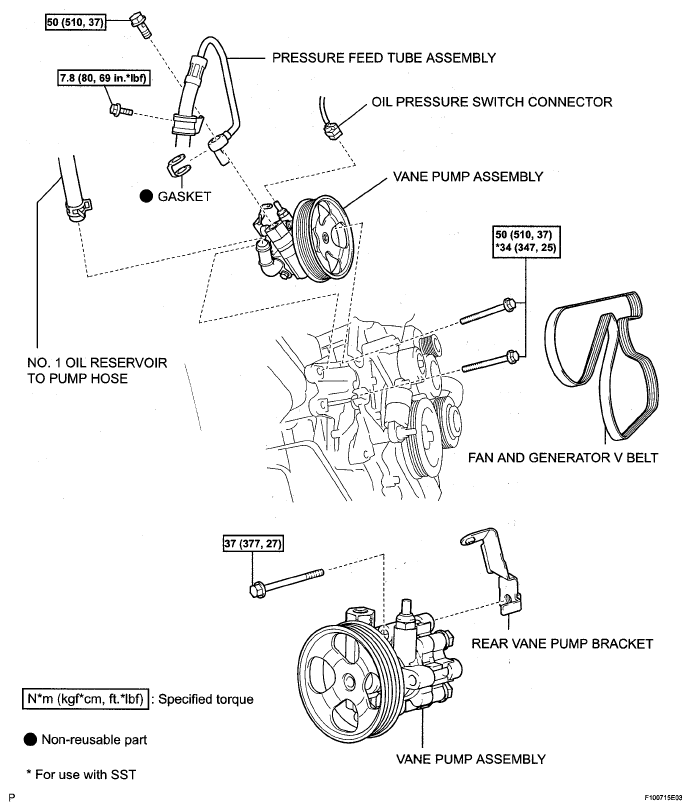

Fig 1: Vane Pump Replacement Components With Torque Specifications (1 Of 2)
G05540532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

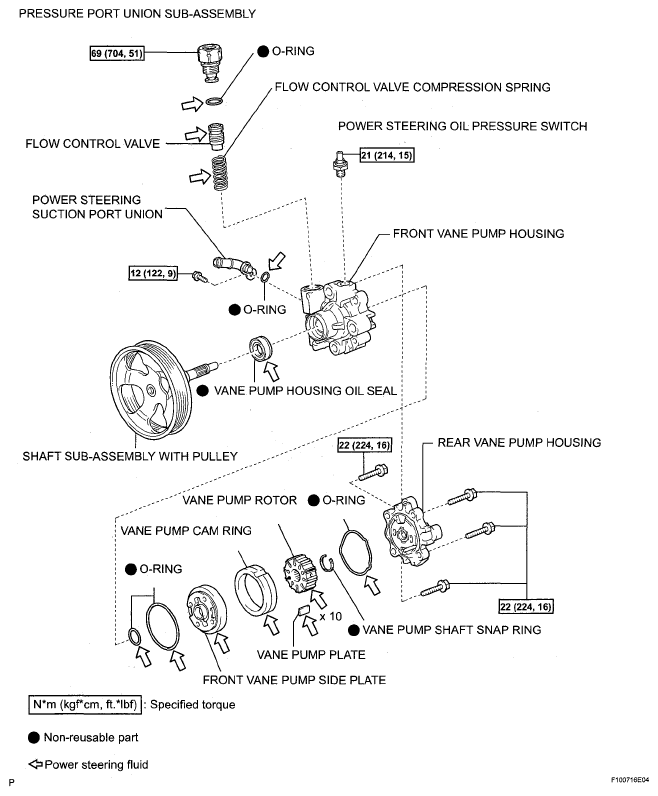

Fig 2: Vane Pump Replacement Components With Torque Specifications (2 Of 2)
G05540533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
