Automatic Transmission/Transaxle
SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: SERVICE DATA
SERVICE DATA

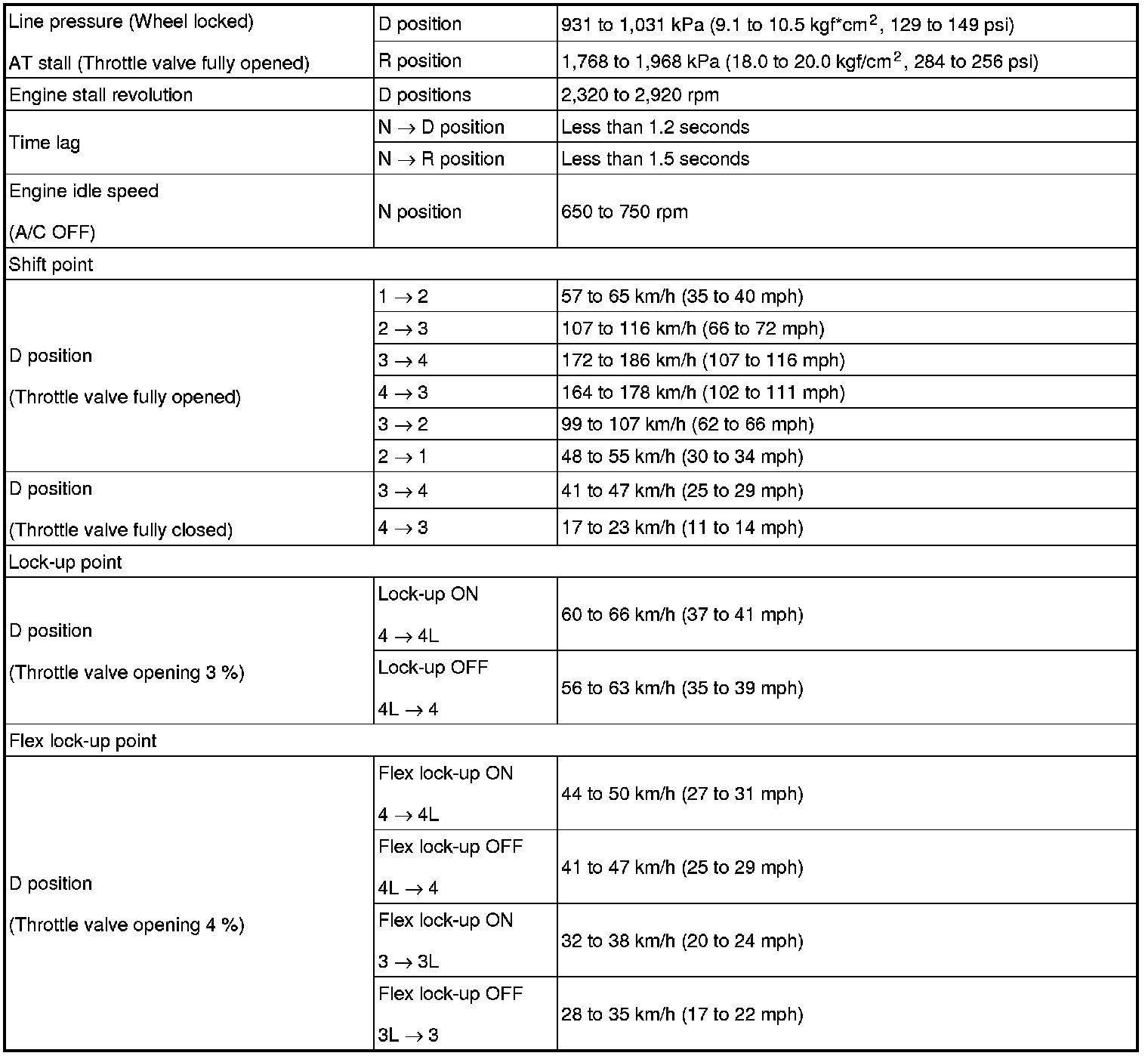

AUTOMATIC TRANSAXLE SYSTEM
SPEED SENSOR

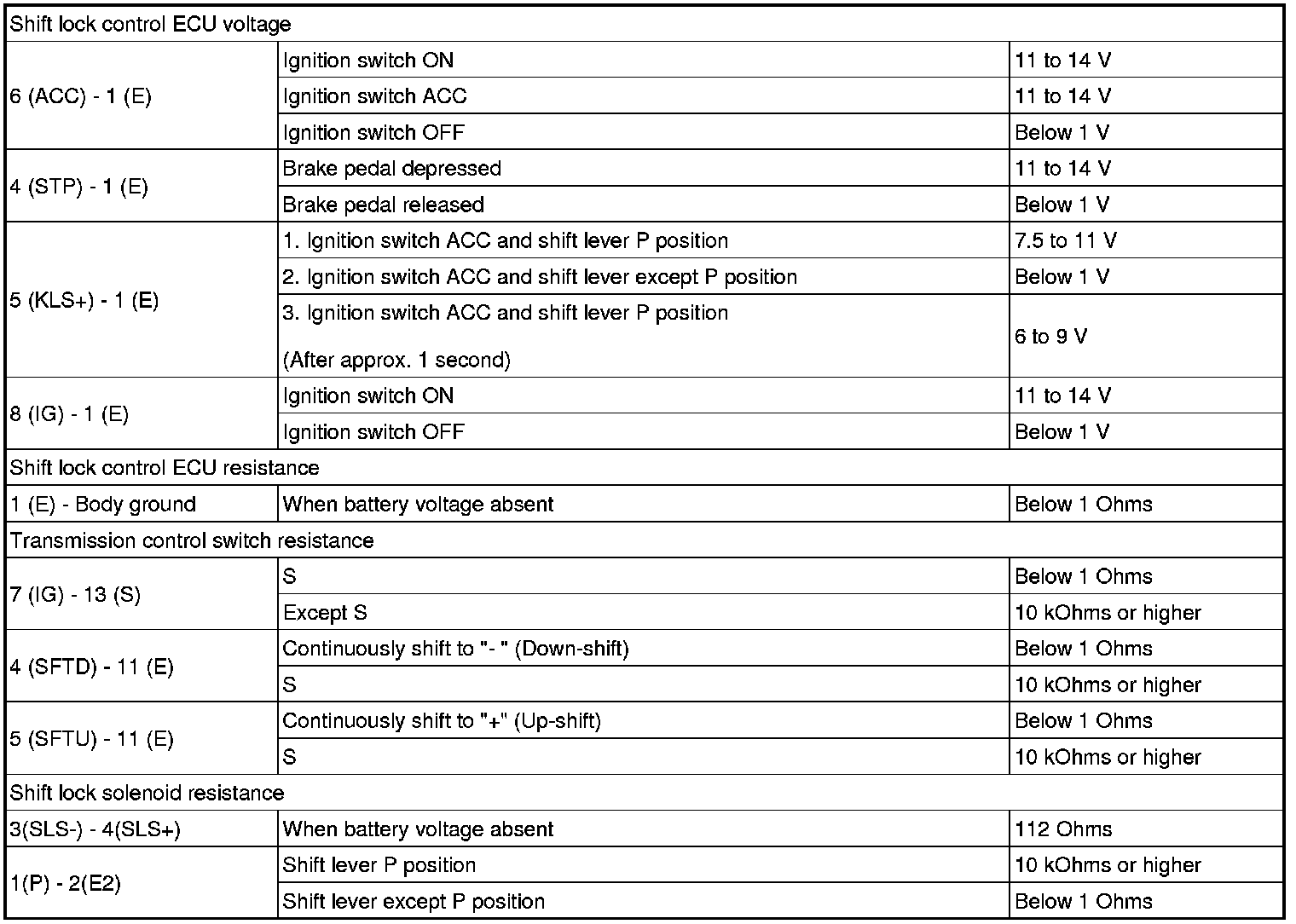

PARK / NEUTRAL POSITION SWITCH
TRANSMISSION WIRE
VALVE BODY ASSEMBLY
SHIFT LEVER
DIFFERENTIAL OIL SEAL
TORQUE CONVERTER AND DRIVE PLATE

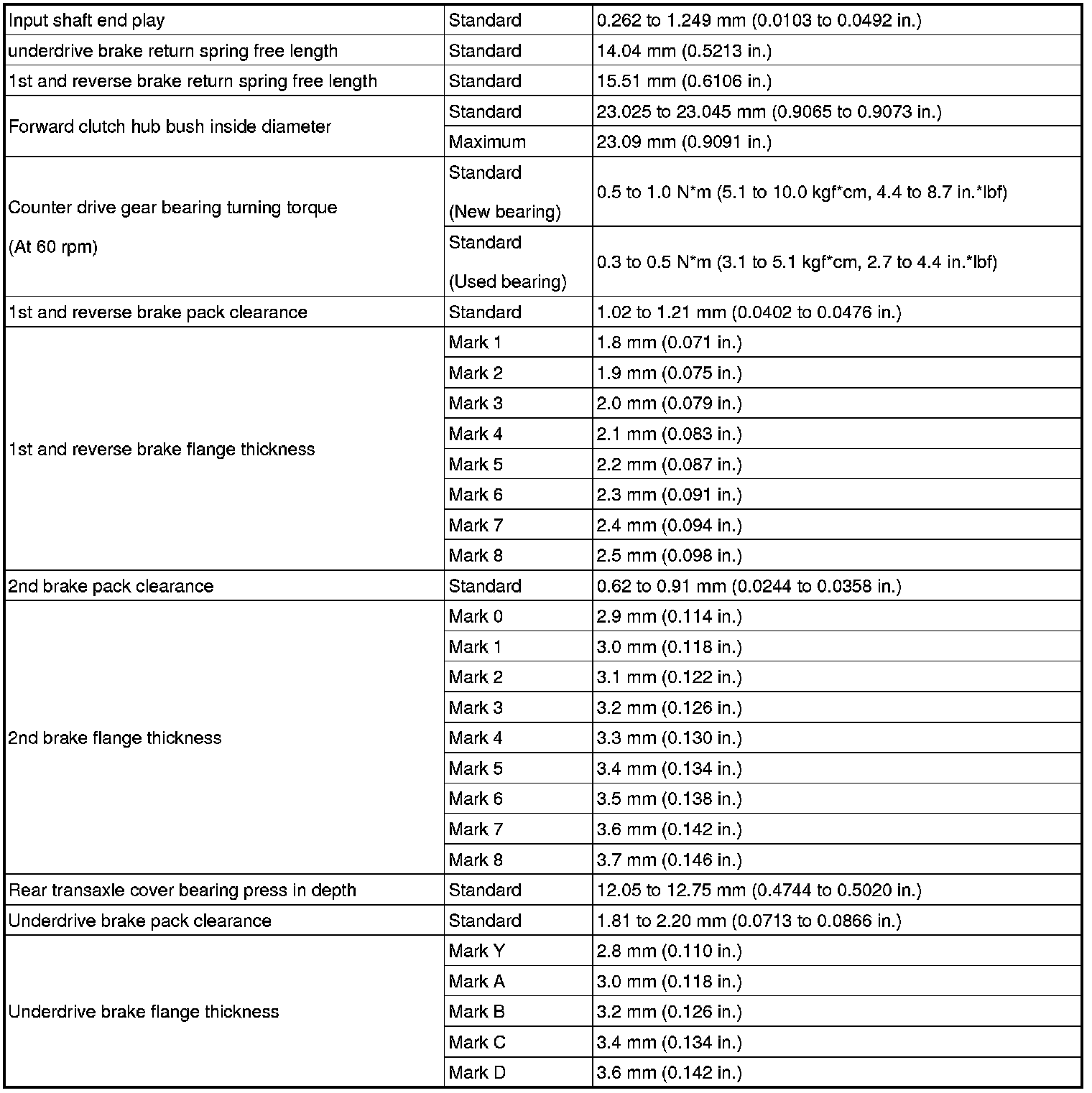

AUTOMATIC TRANSAXLE UNIT

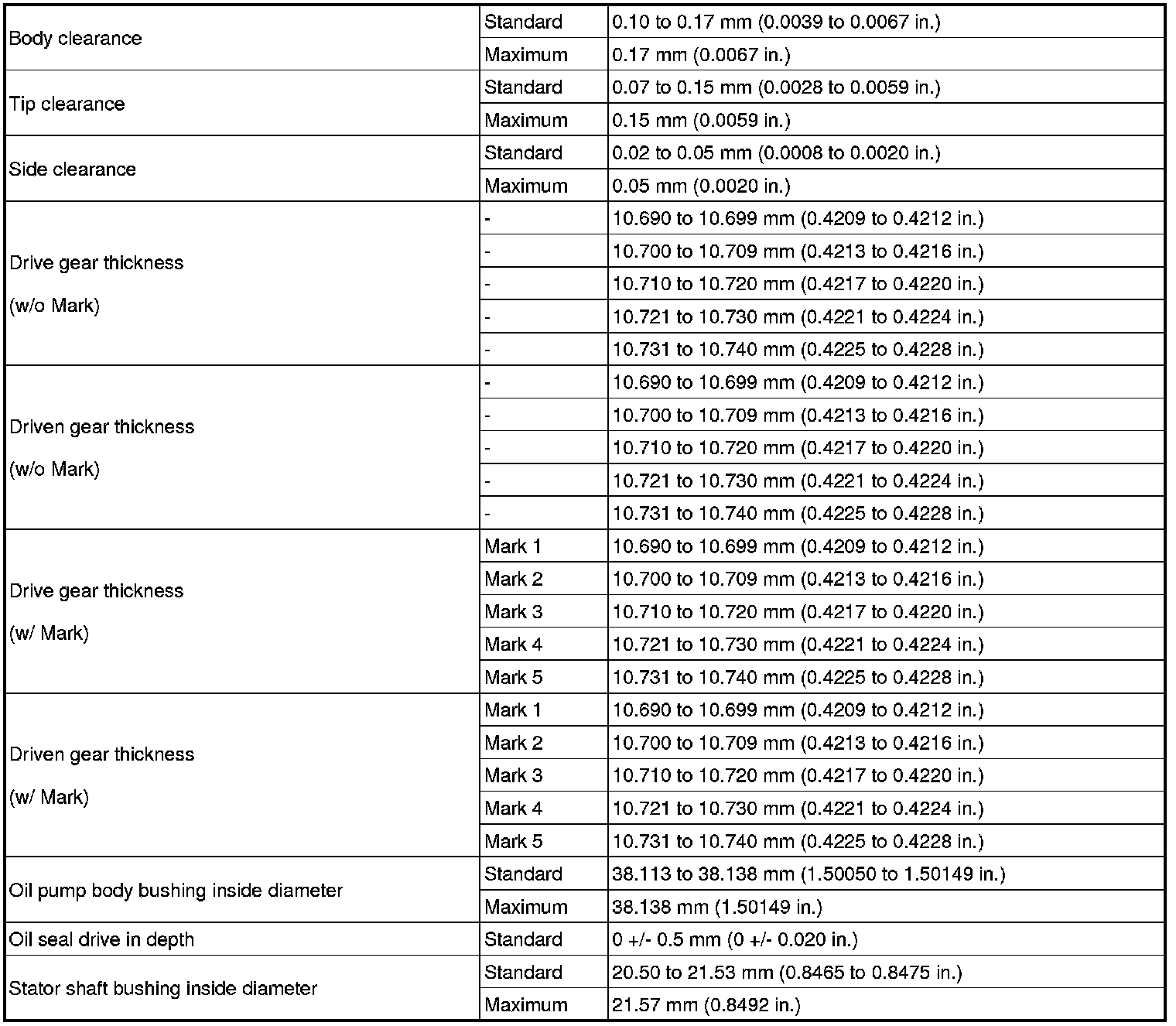

OIL PUMP
SECOND BRAKE PISTON
FORWARD CLUTCH
DIRECT CLUTCH
UNDERDRIVE PLANETARY GEAR
UNDERDRIVE CLUTCH

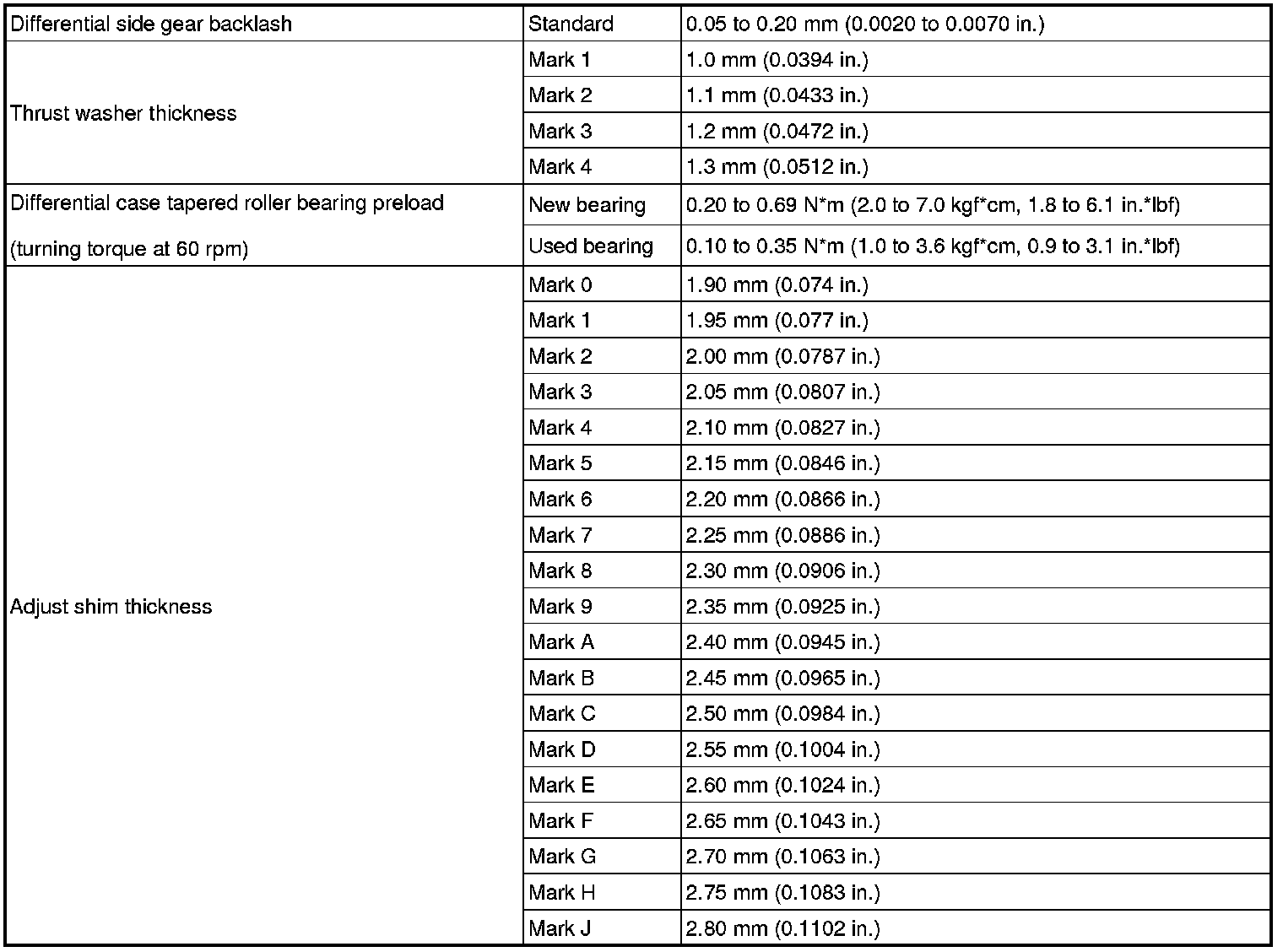

DIFFERENTIAL
