Intake Manifold

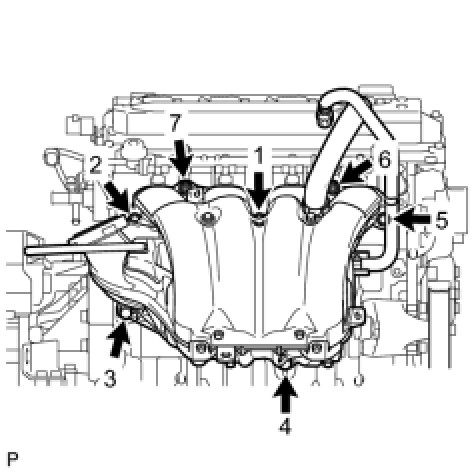

Install the
intake manifold
with the 5 bolts and 2 nuts.
Torque: 30 Nm (306 kgf-cm, 22 ft-lbf)
