Steering Knuckle: Components

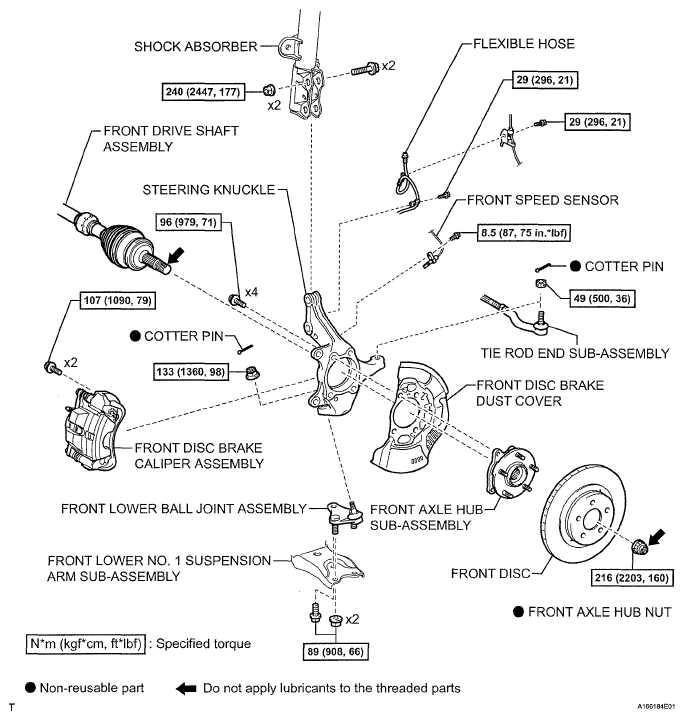

Fig 1: Steering Knuckle Replacement Components With Torque Specifications
G05389168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
