Fuel Sender Gauge Assembly: Components

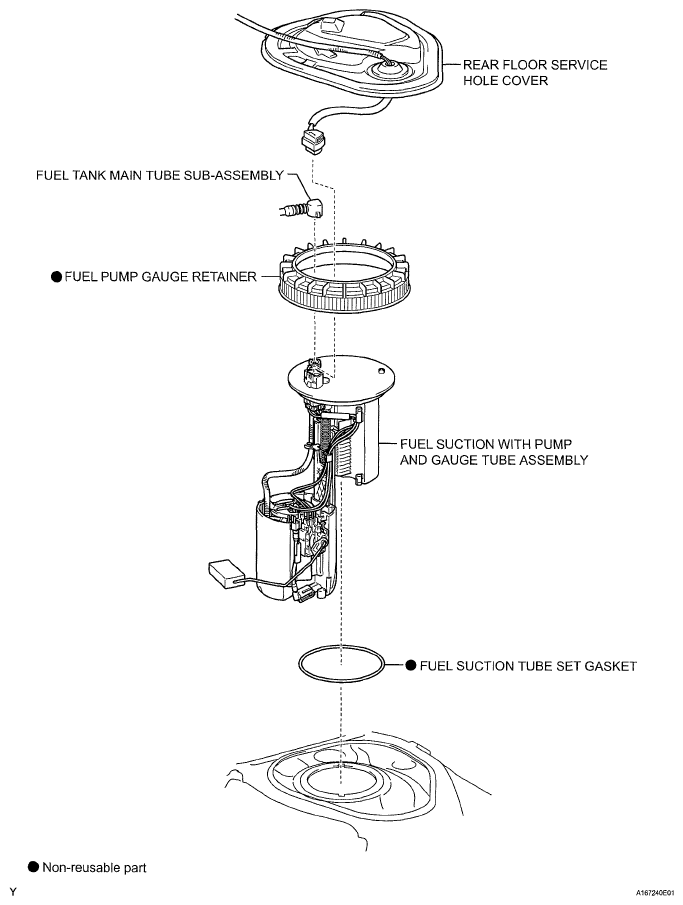

Fig 1: Identifying Fuel Sender Gauge Assembly Components And Tightening Torque (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

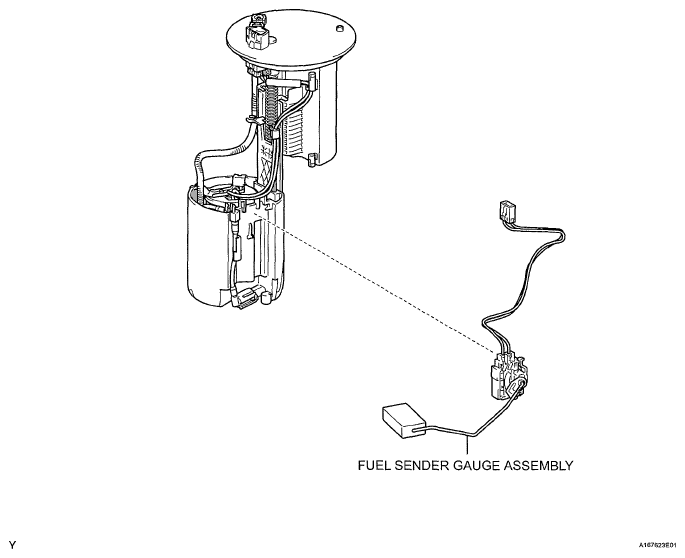

Fig 2: Identifying Fuel Sender Gauge Assembly Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Fuel Sender Gauge Assembly Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
