Exhaust Manifold

Exhaust Manifold

Install Exhaust Manifold

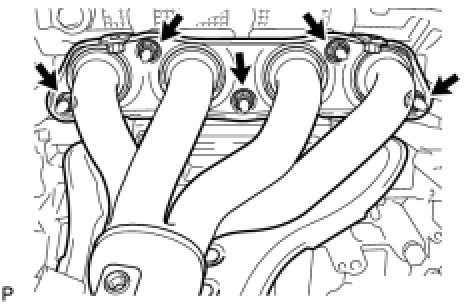

Install a new exhaust manifold gasket and exhaust manifold with the 5 nuts in the sequence shown in the illustration.

Torque: 21 Nm (214 kgf-cm, 16 ft-lbf)
