Rear Speed Sensor: Components

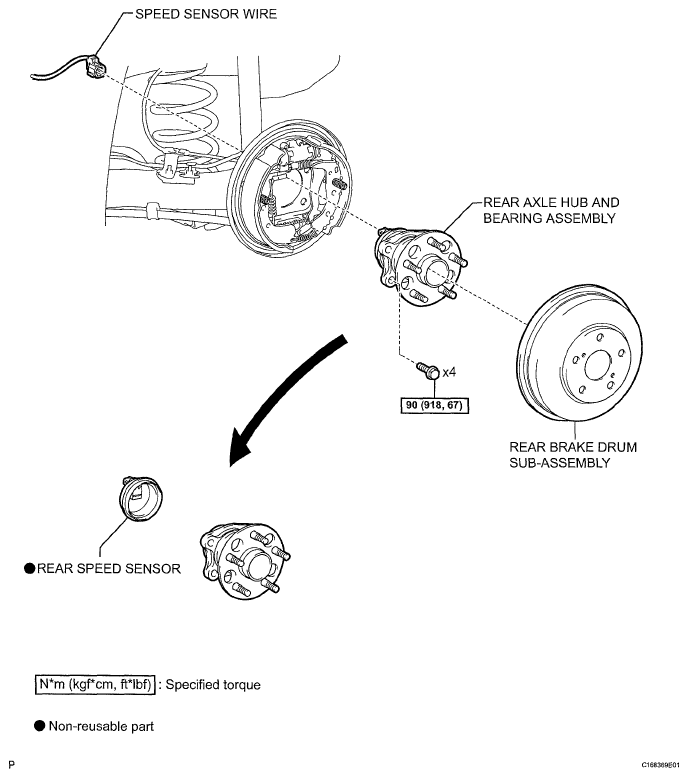

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications
G05401289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
