Shift And Select Lever Shaft: Components

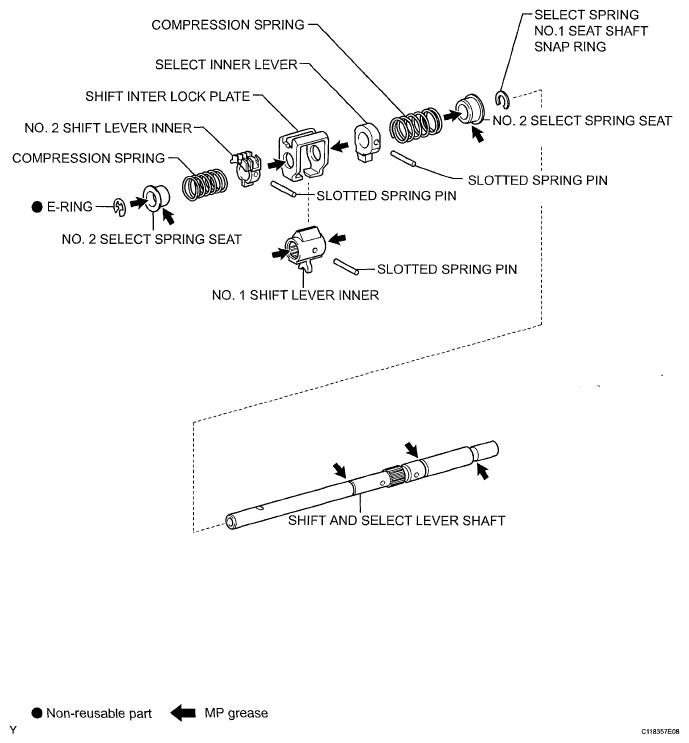

Fig 1: Identifying Shift And Select Lever Shaft Components
G05400744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
