Clutch Unit: Components

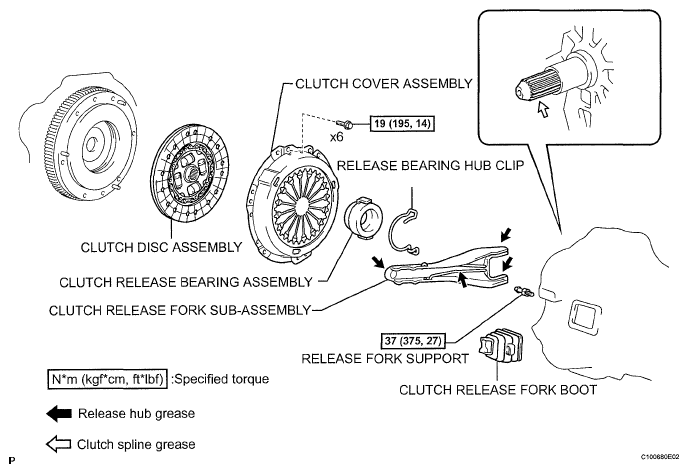

Fig 1: Clutch Unit Components And Torque Specifications

G05400446

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
