Rear Speed Sensor: Components: Illustration

Fig 1: Identifying Rear Speed Sensor Replacement Components (1 Of 2)
GTY158109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

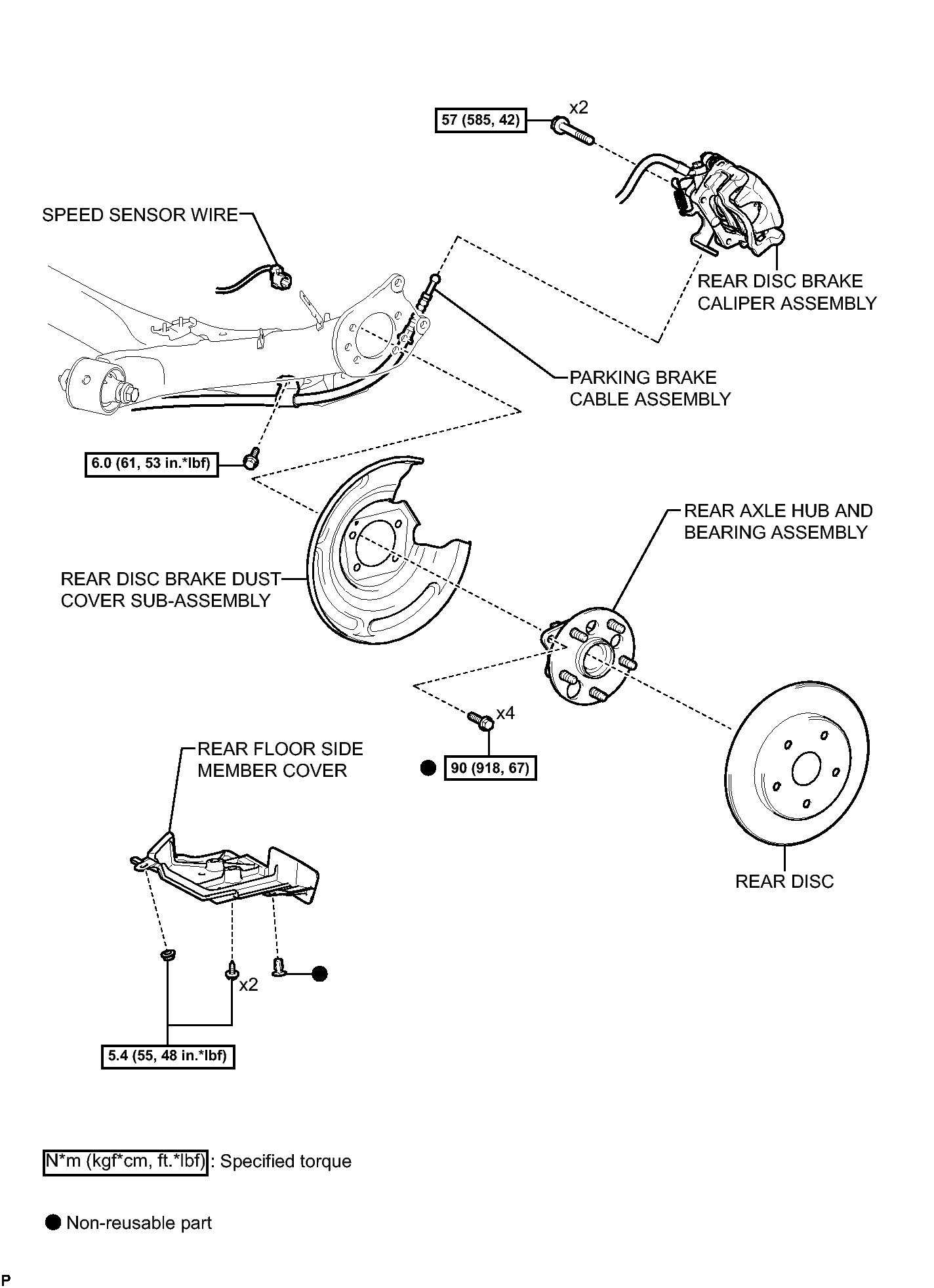

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specification (2 Of 2)
GTY157877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
