Engine Control (Service Information): ECM: Components: Illustration

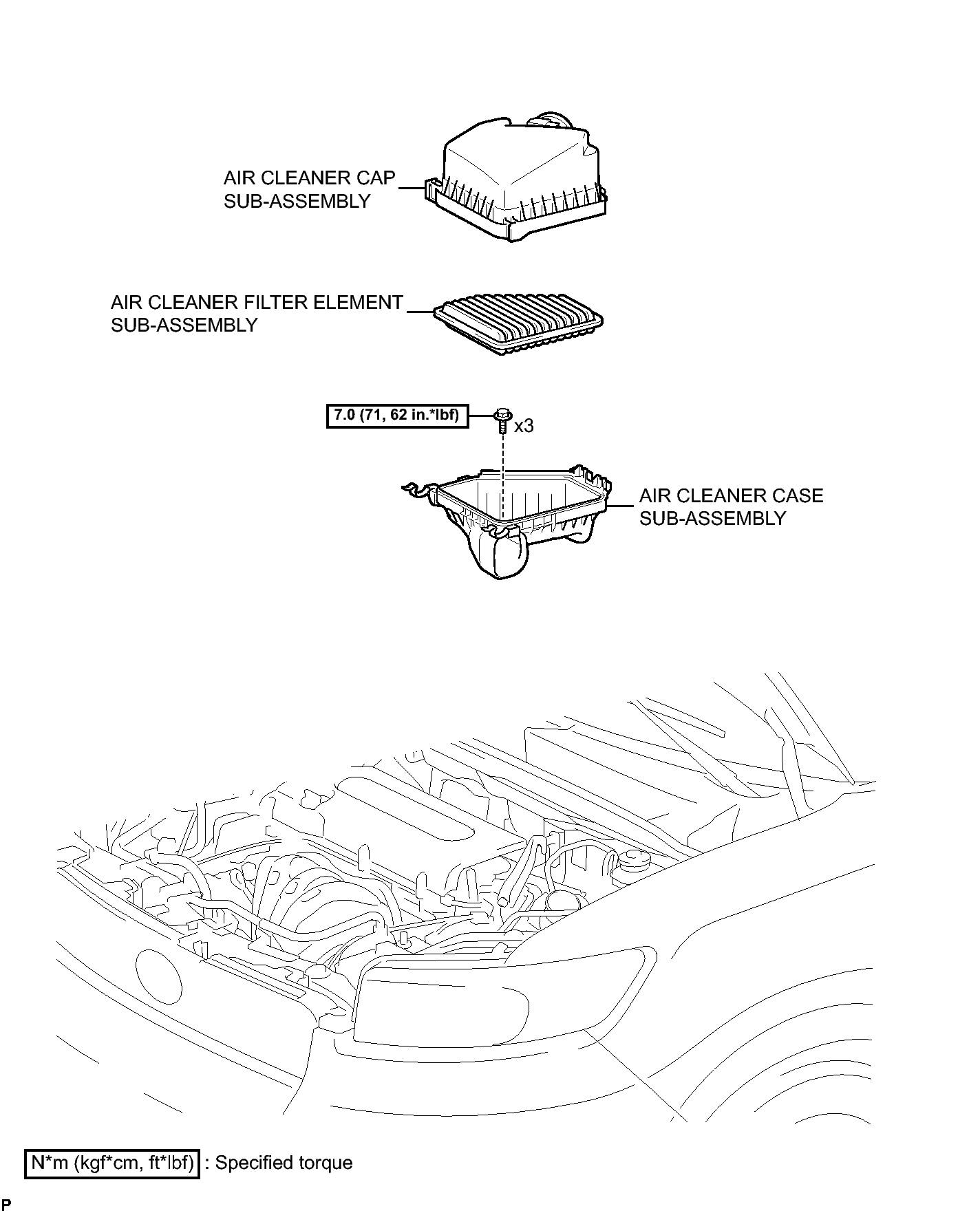

Fig 1: Identifying ECM Replacement Components With Torque Specifications (1 Of 2)
GTY160878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

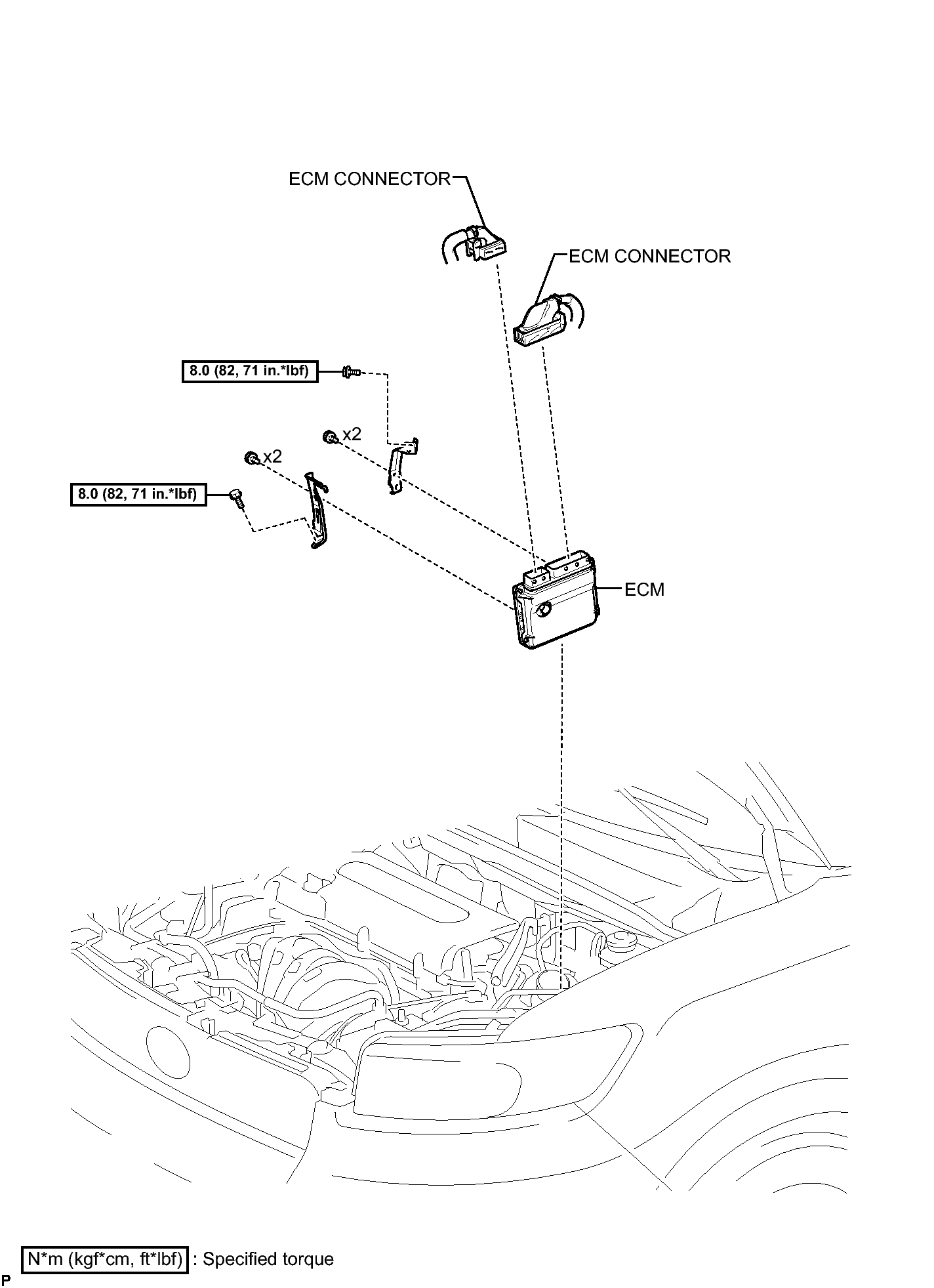

Fig 1: Identifying ECM Replacement Components With Torque Specifications (2 Of 2)
GTY160943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
