Parts Location: Illustration

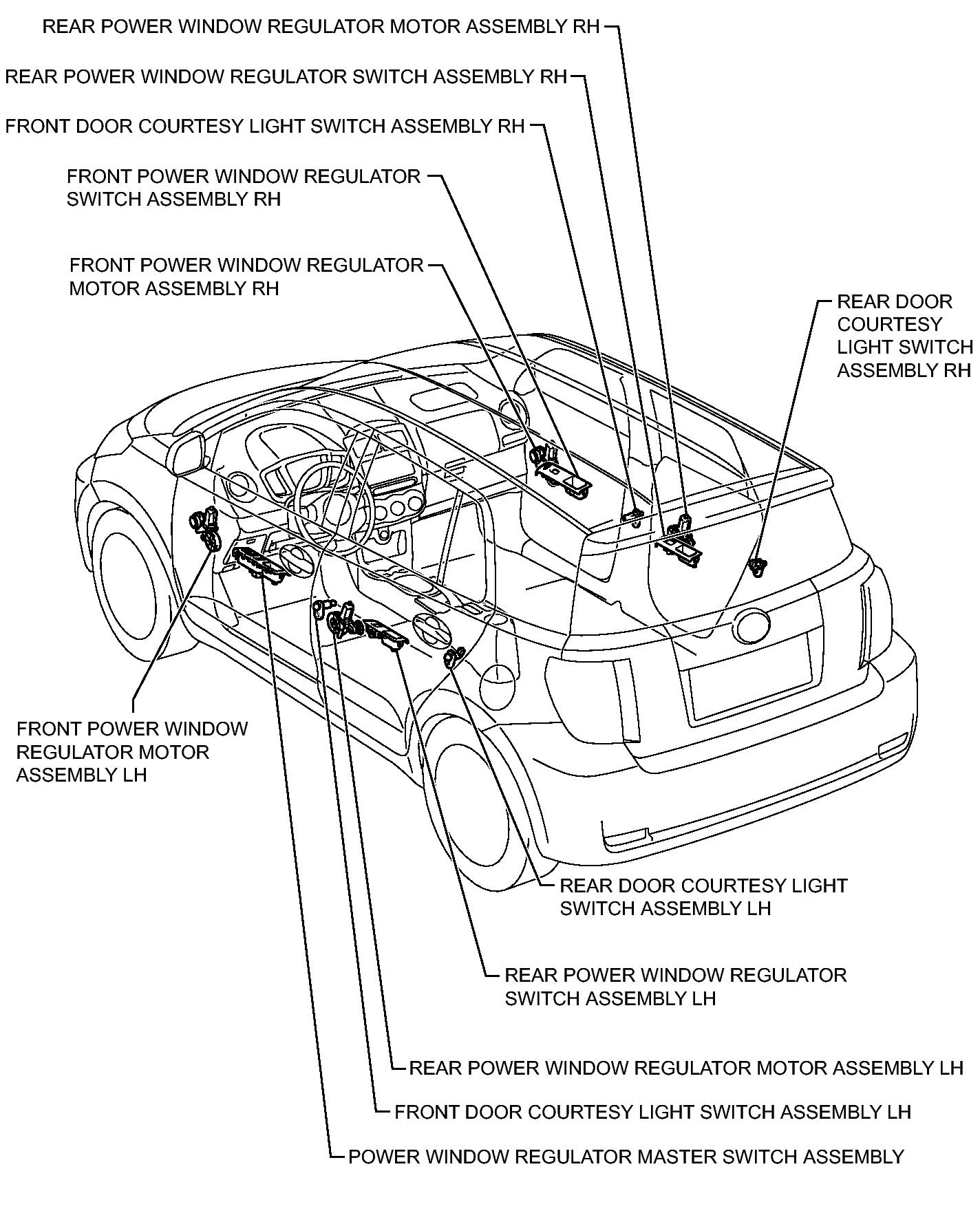

Fig 1: Identifying Power Window Control System Components (1 Of 2)
GTY160193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

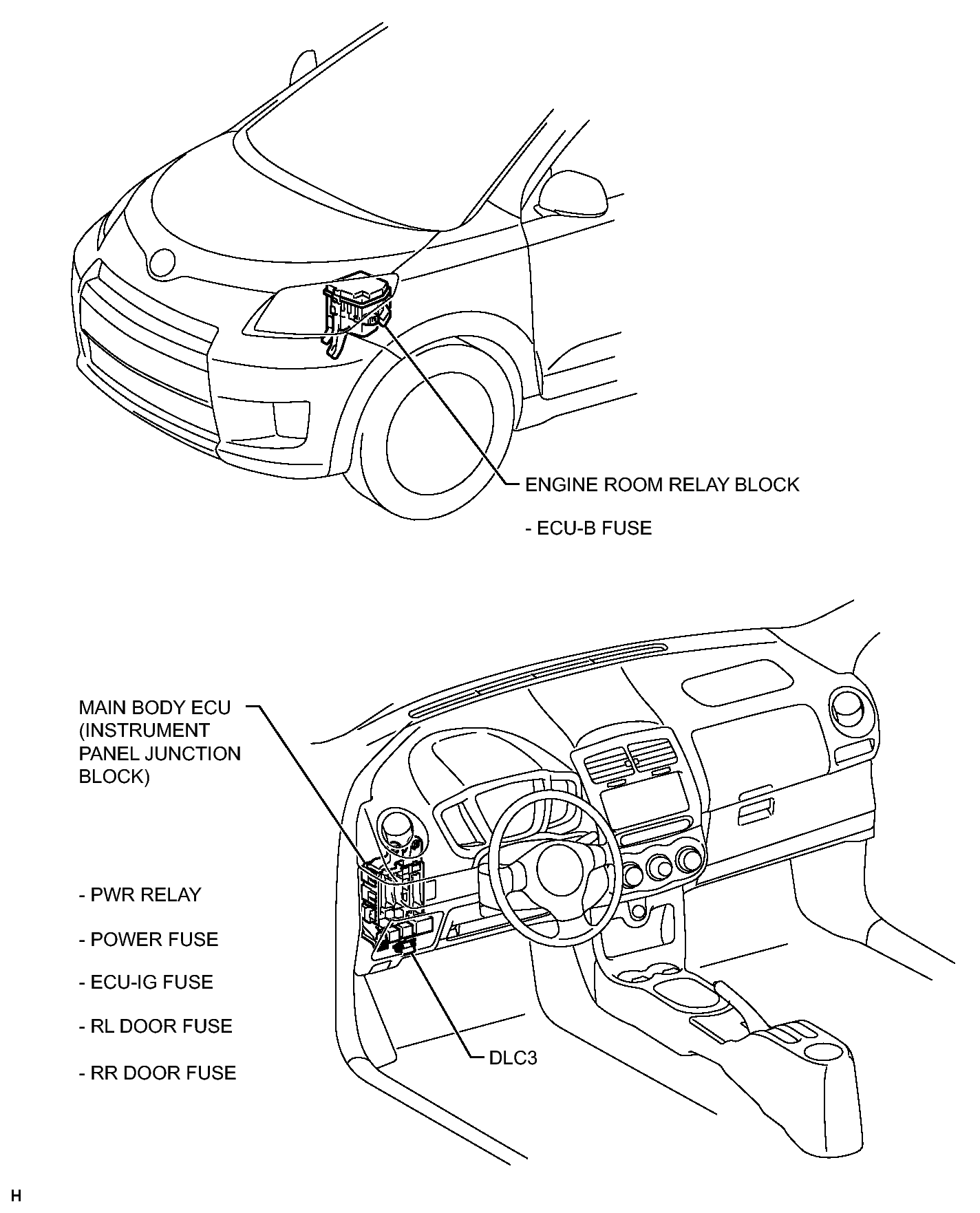

Fig 1: Identifying Power Window Control System Components (2 Of 2)
GTY160194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
