xD Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window Control (Diagnostics)
>>
Power Window Control System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

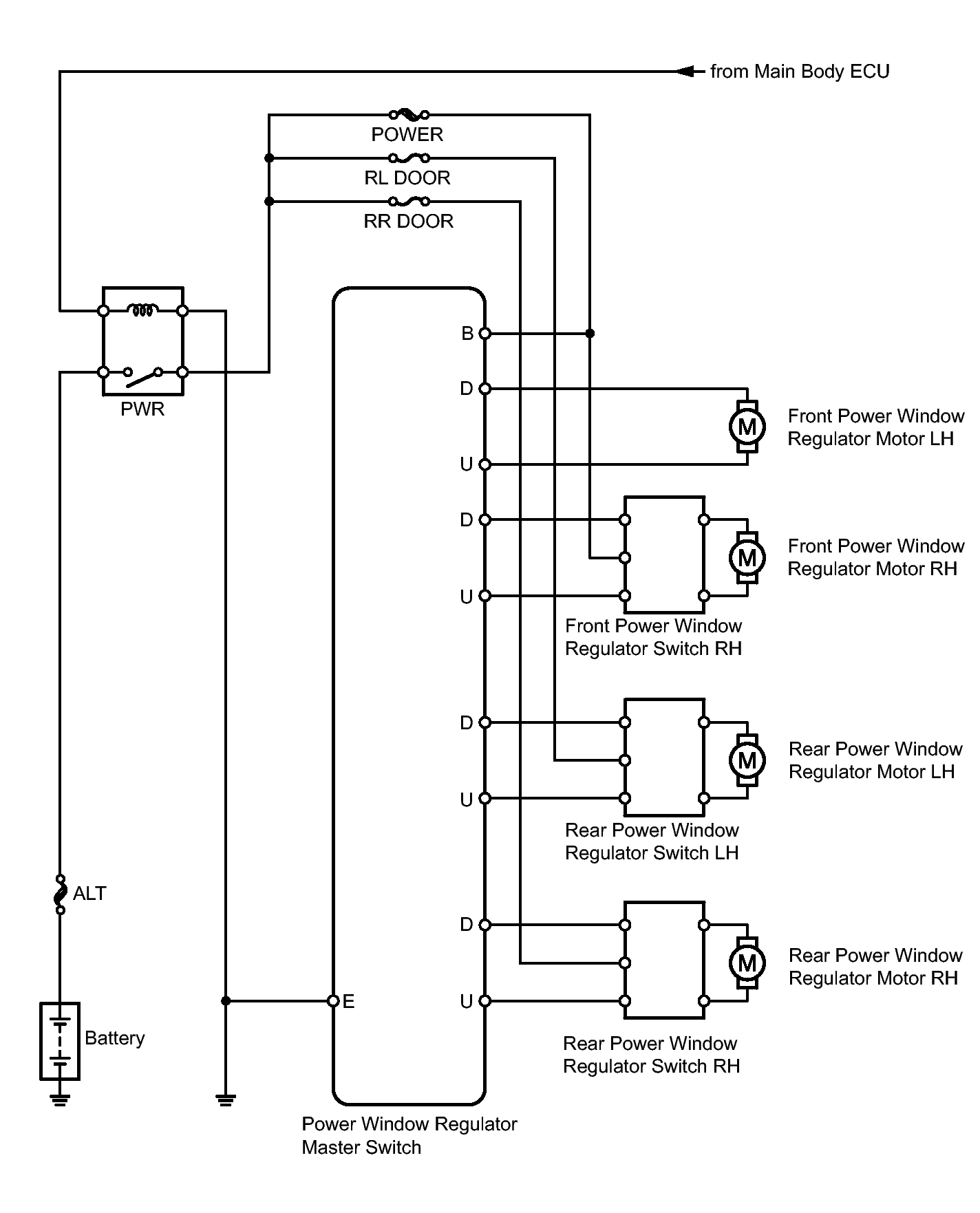

Fig 1: Power Window Control System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

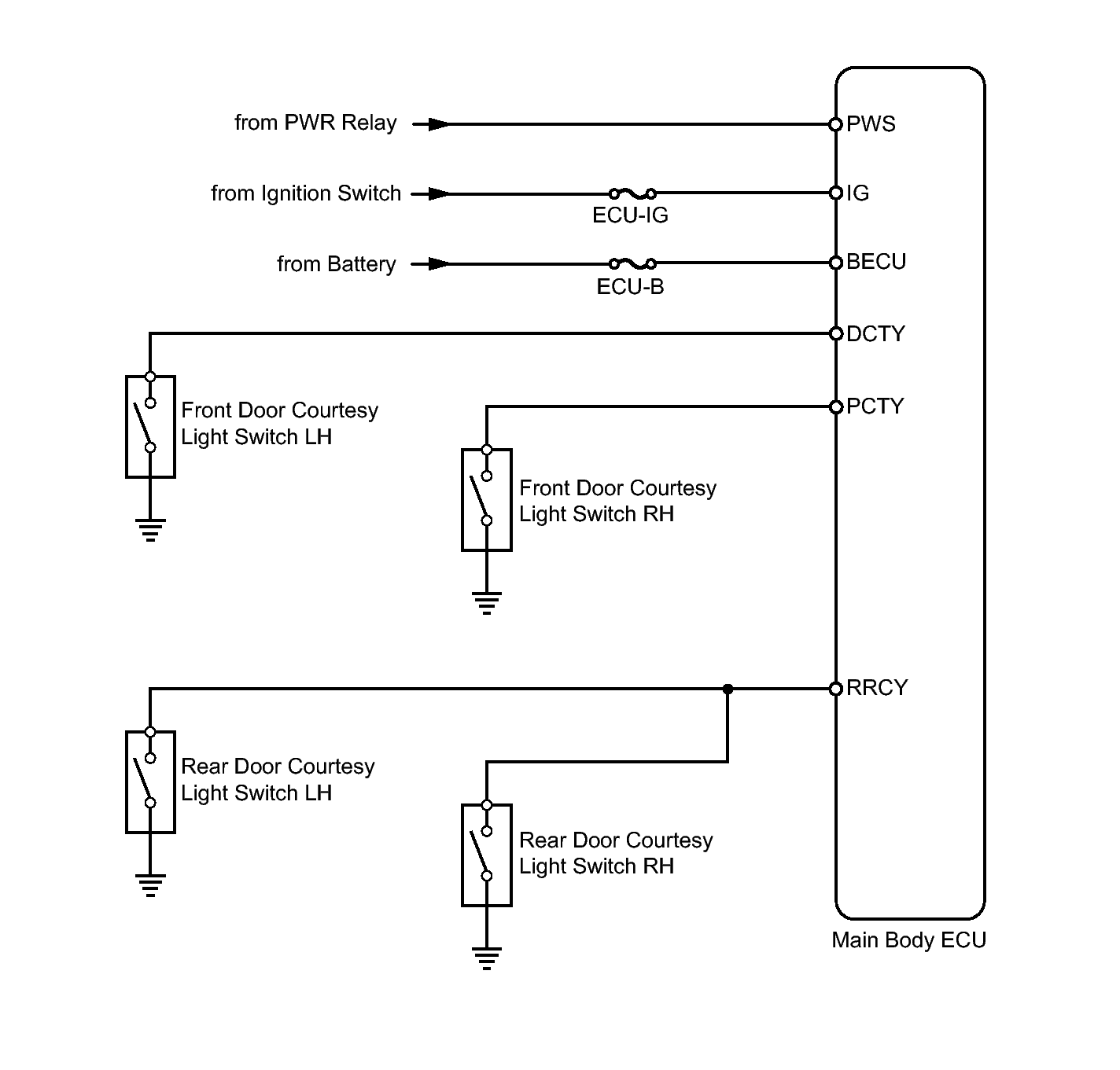

Fig 2: Power Window Control System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
