DOOR LOCK: DOOR CONTROL RECEIVER: INSTALLATION

HINT
A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL DOOR CONTROL RECEIVER

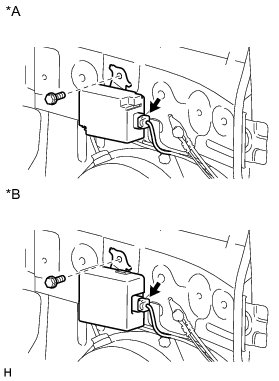

(a) Install the receiver with the bolt.





Text in Illustration





(b) Connect the connector.

2. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH Installation

3. INSTALL FRONT DOOR SCUFF PLATE LH Installation

4. INSTALL REAR SEAT ASSEMBLY

Installation
