Fuse Block

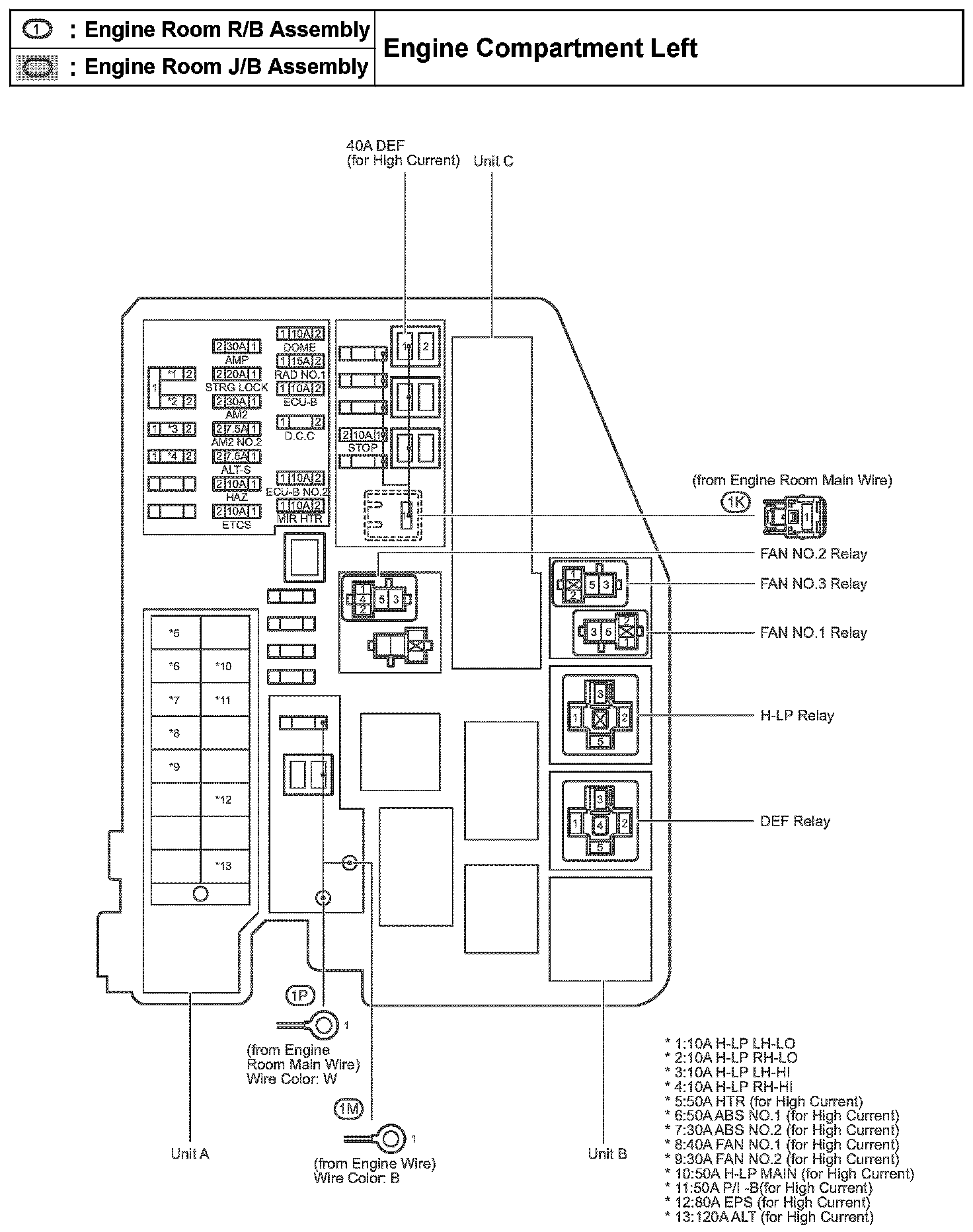

Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left:

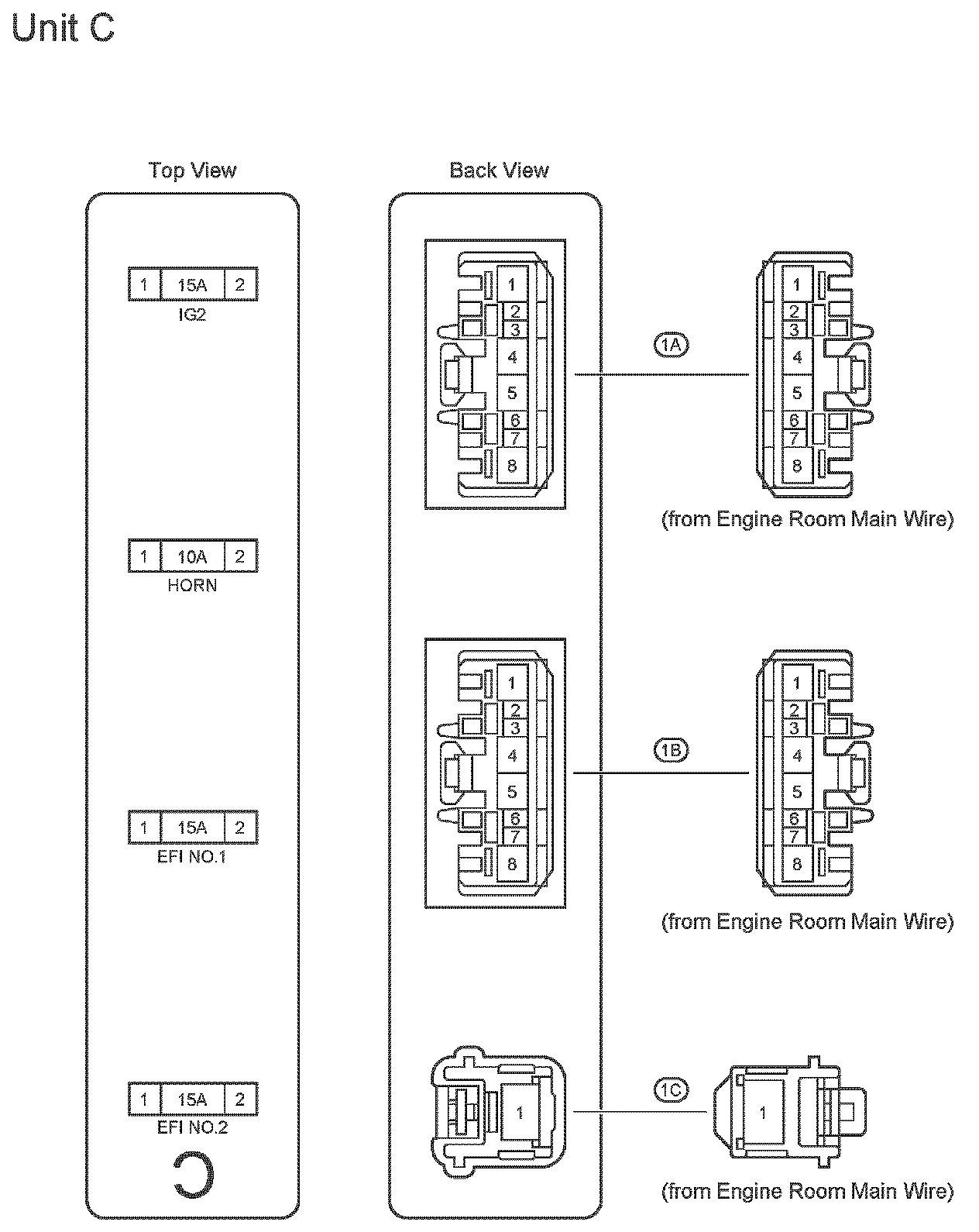

Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left:

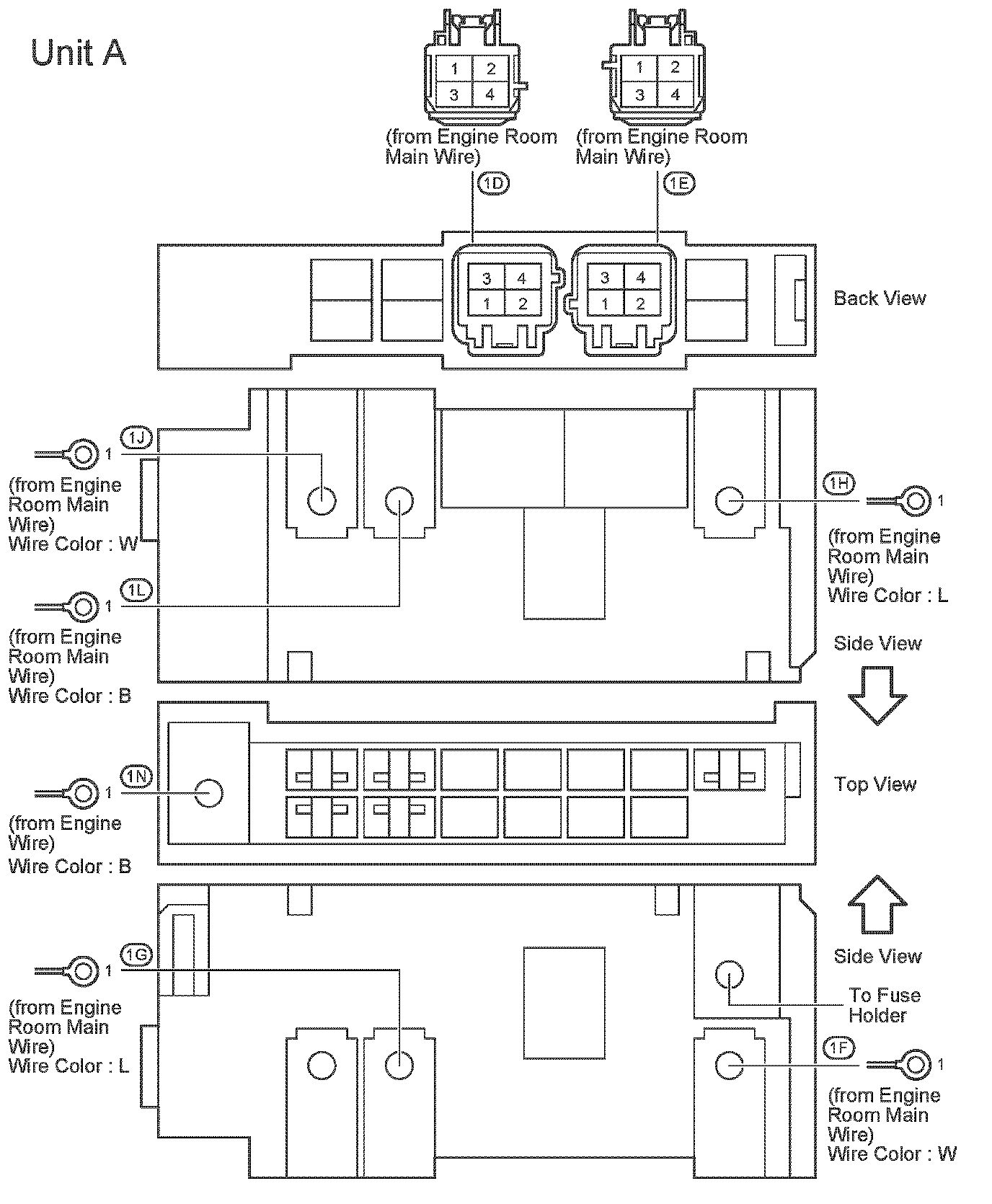

Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left:

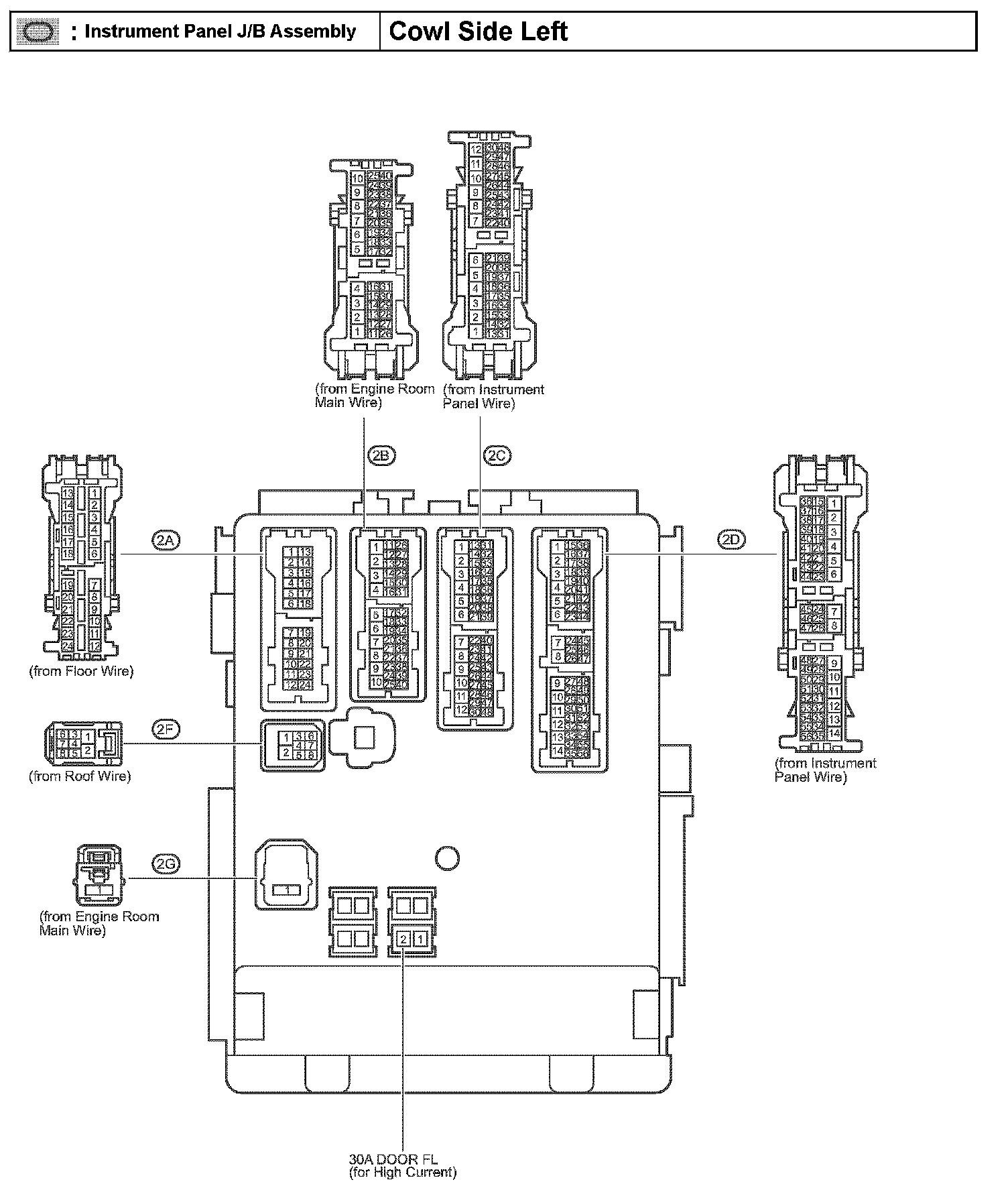

Instrument Panel J/B Assembly - Cowl Side Left:






Instrument Panel J/B Assembly - Cowl Side Left:
