Computers and Control Systems: Description and Operation

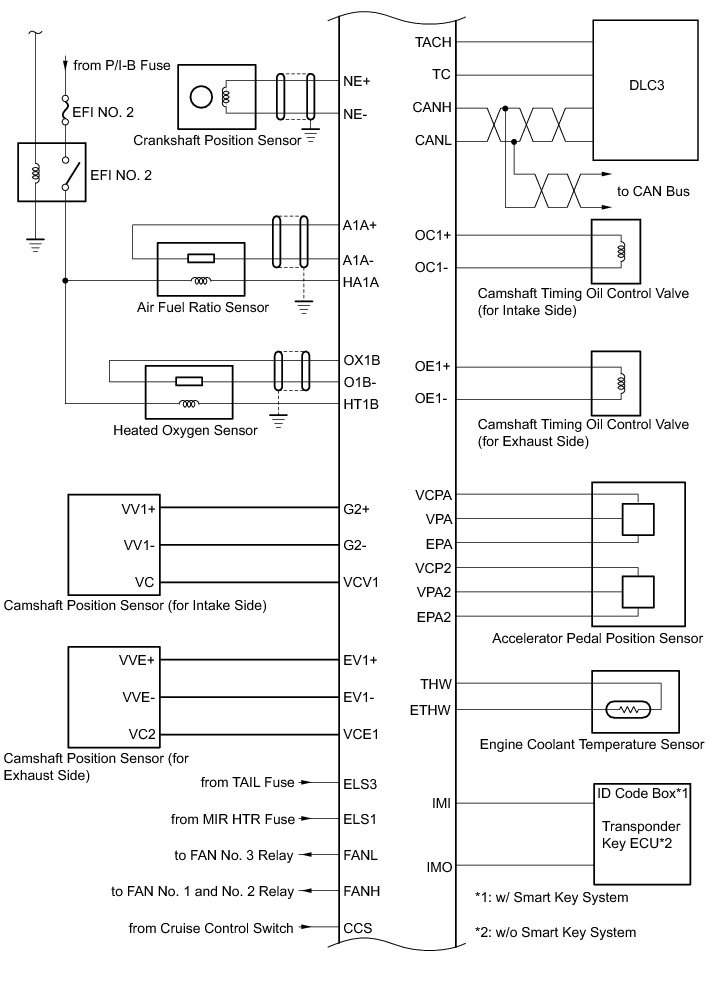

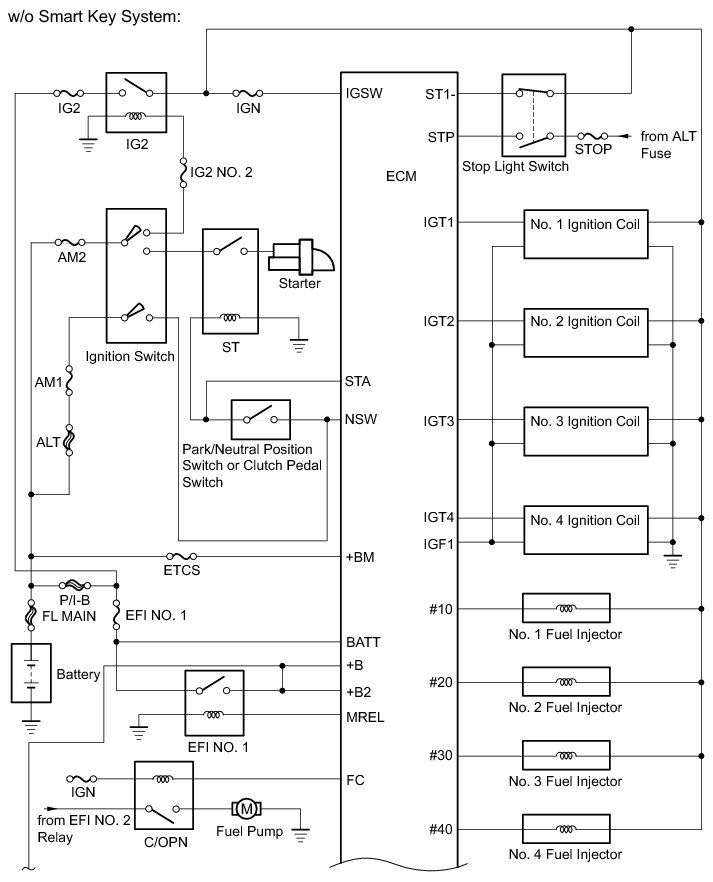

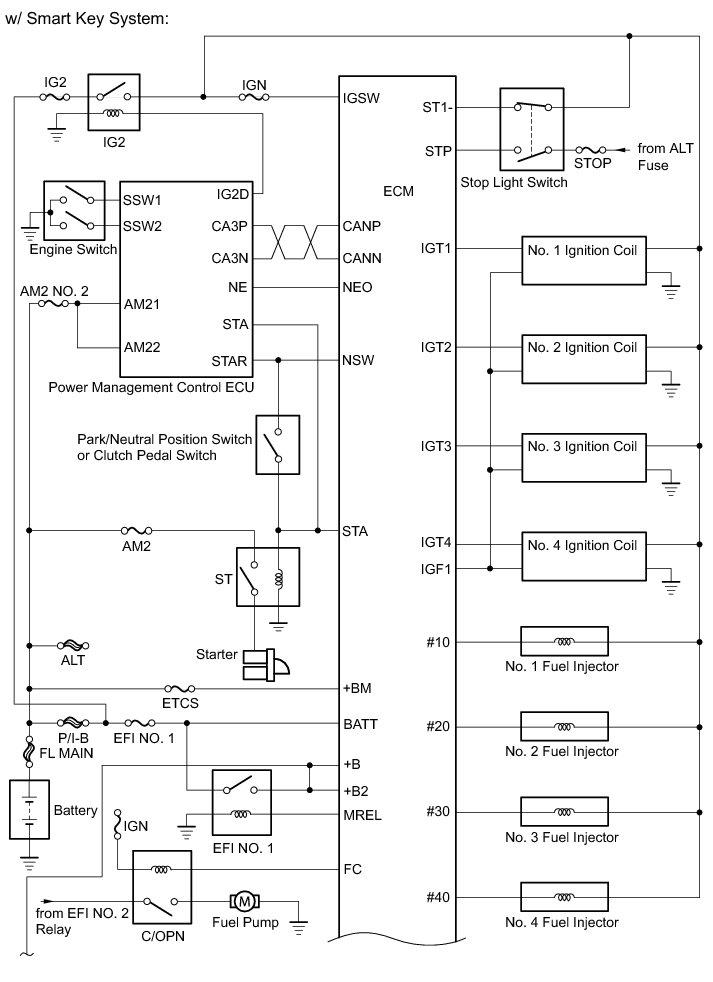

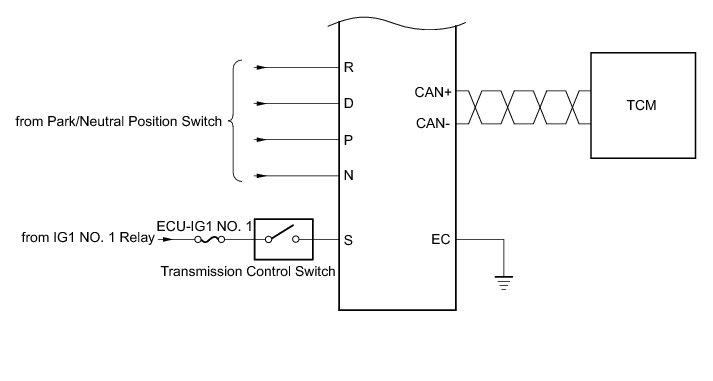

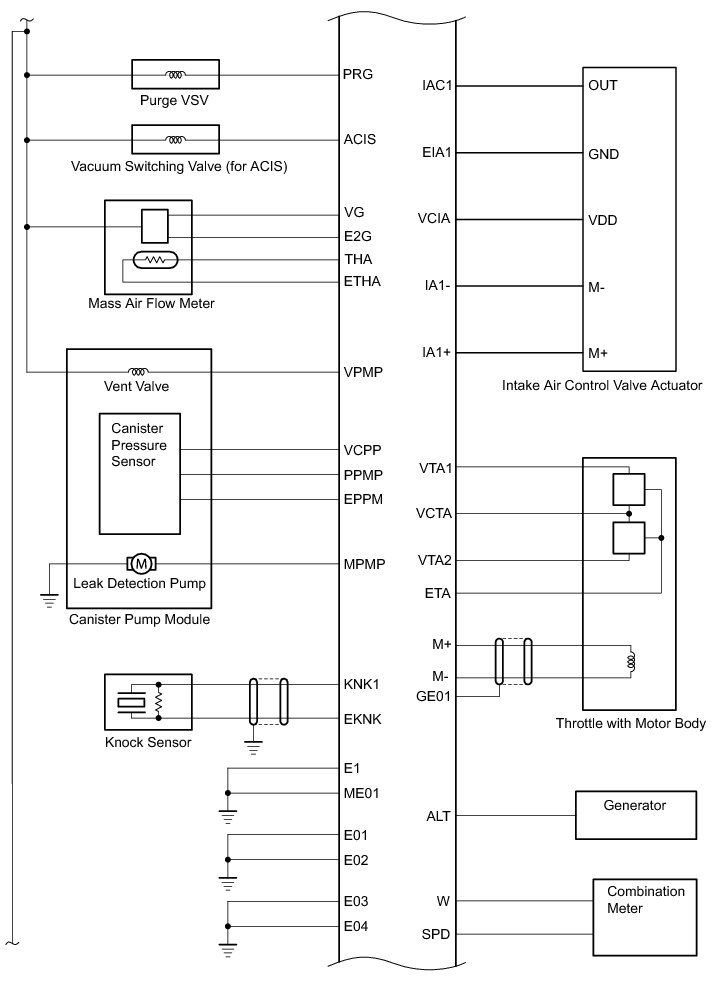

2AR-FE ENGINE CONTROL: SFI SYSTEM: SYSTEM DIAGRAM
