Fuel Pressure Regulator: Components: Illustration

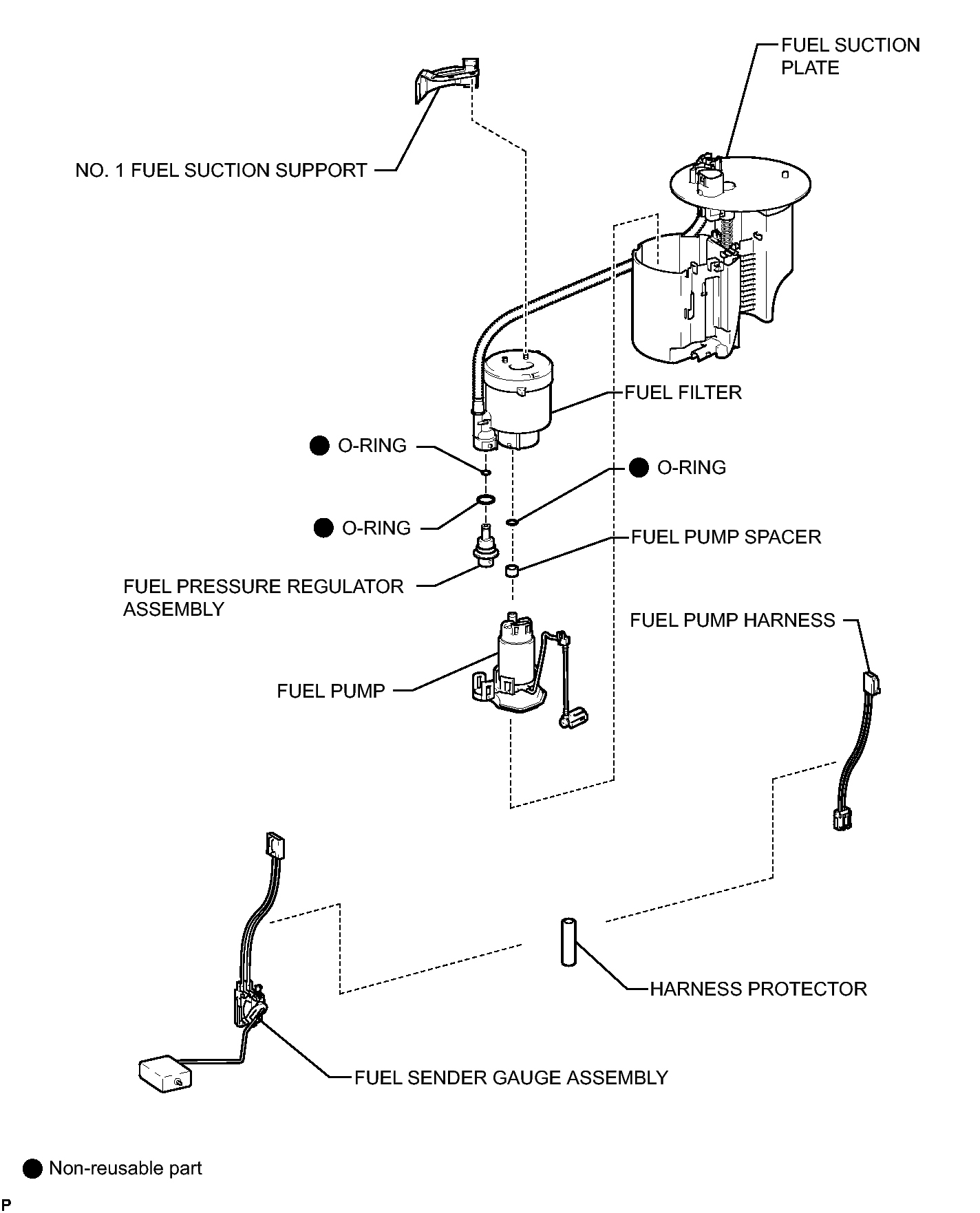

Fig 1: Exploded View Fuel Pressure Regulator Replacement Components
GTY311483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
