Passive Arming On/Off Selection, Entry Delay Time Selection

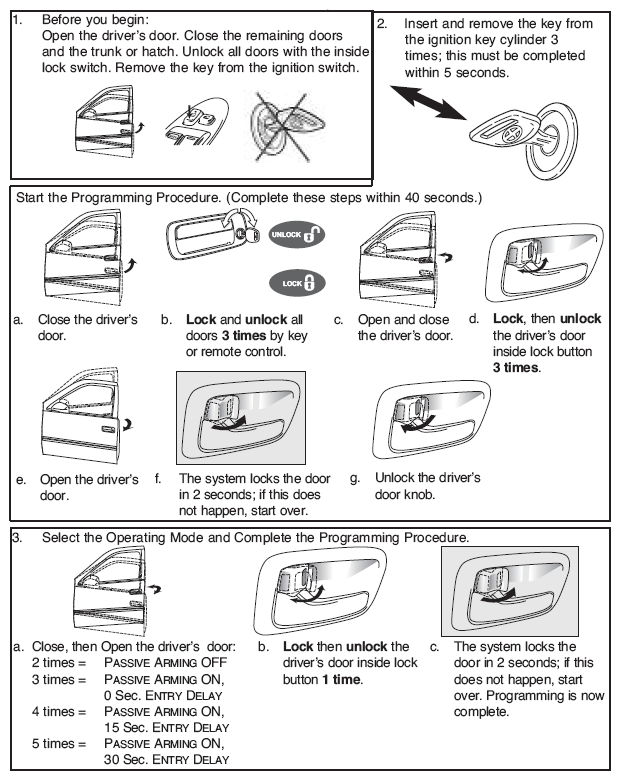

Fig 1: Passive Arming ON/OFF Selection, Entry Delay Time Selection Procedure
G06741255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
