Revolution Sensor (NIN Sensor): Components: Illustration

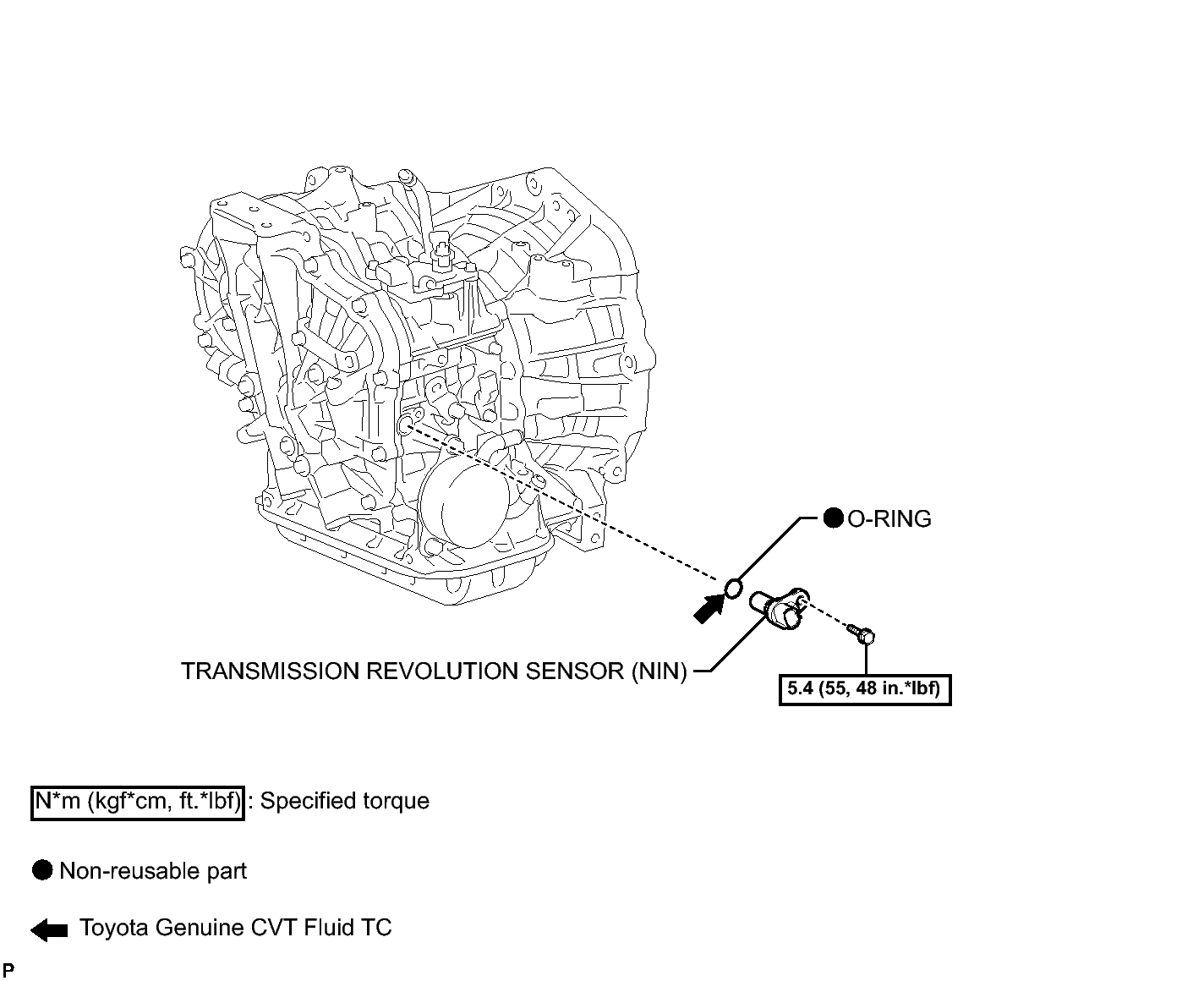

Fig 1: Identifying Revolution Sensor (NIN Sensor) Replacement Components With Torque Specifications
GTY345487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
