Ignition Coil And Spark Plug: Removal: Removal

  1. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 4 ignition coil connectors.

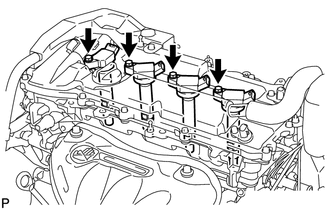

      2. Fig 1: View Of Ignition Coils And Bolts
      GTY314640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 ignition coils.
  2. REMOVE SPARK PLUG
      Fig 2: Removing Spark Plug
      GTY311609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a 16 mm spark plug wrench, remove the 4 spark plugs.
      TEXT IN ILLUSTRATION

      *1 16 mm Spark Plug Wrench
