Rear Speed Sensor: Components: Illustration

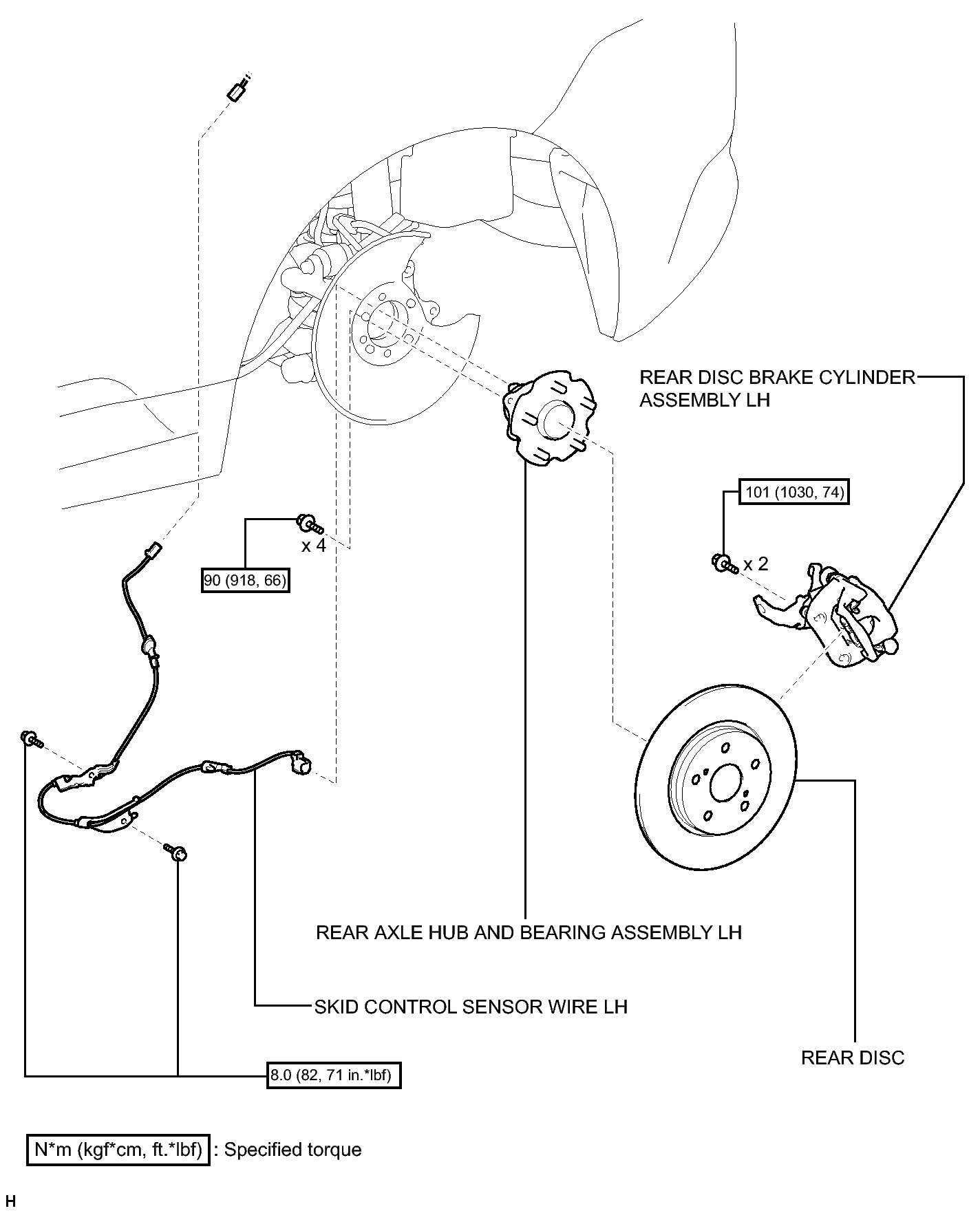

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications
GTY313497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
