Heated Oxygen Sensor: Removal: Removal

  1. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

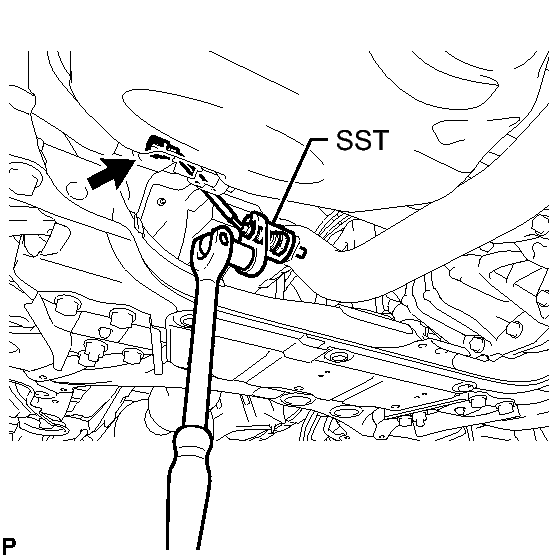

    Fig 1: Removing Heated Oxygen Sensor (For Bank 1 Sensor 2) W/ SST
    GTY311796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Using SST, remove the sensor from the front exhaust pipe.
      • SST: 09224-00010
