Problem Symptoms Table
DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (W/ Smart Key System): PROBLEM SYMPTOMS TABLE
HINT

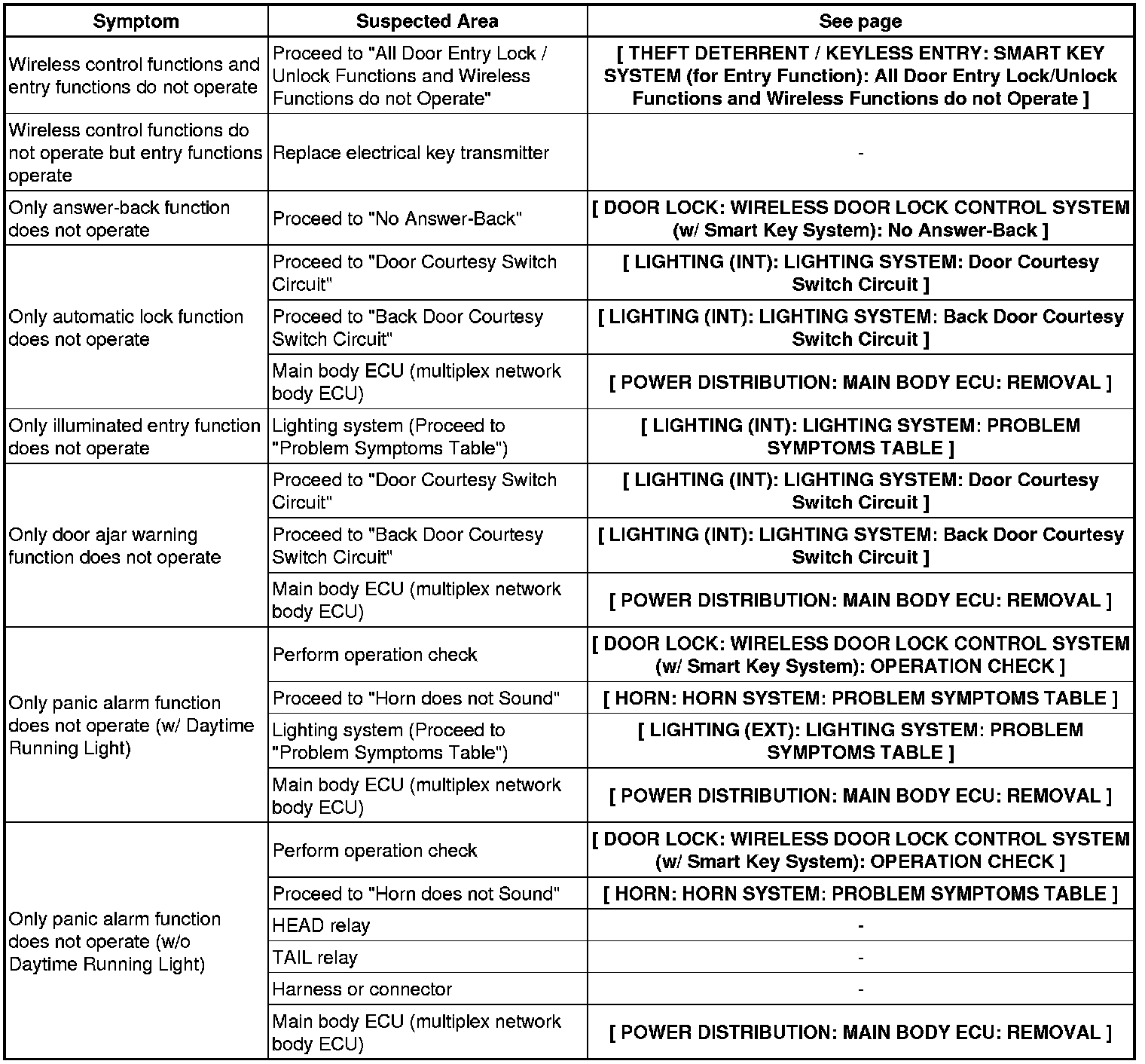

* Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
* Inspect the fuses and relays related to this system before inspecting the suspected areas below.
Wireless Door Lock Control System
