Start / Stop Switch: Testing and Inspection

2AR-FE STARTING: ENGINE SWITCH: INSPECTION

1. INSPECT ENGINE SWITCH





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

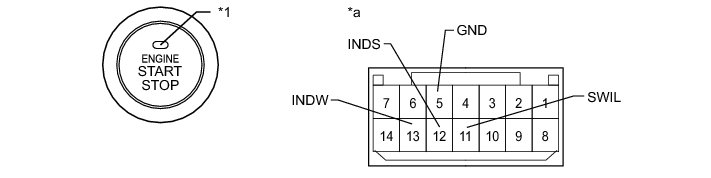

Text in Illustration





If the result is not as specified, replace the engine switch assembly.

(b) Apply battery voltage between the terminals of the switch and check the illumination of the switch.





Text in Illustration





OK:





NOTICE:
* If the positive (+) lead and the negative (-) lead are incorrectly connected, the engine switch indicator will not illuminate.
* If the voltage is too low, the indicator will not illuminate.

If the result is not as specified, replace the engine switch assembly.
