Rear Speed Sensor: Components: Illustration

Fig 1: Identifying Rear Speed Sensor Replacement Components
GTY313170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

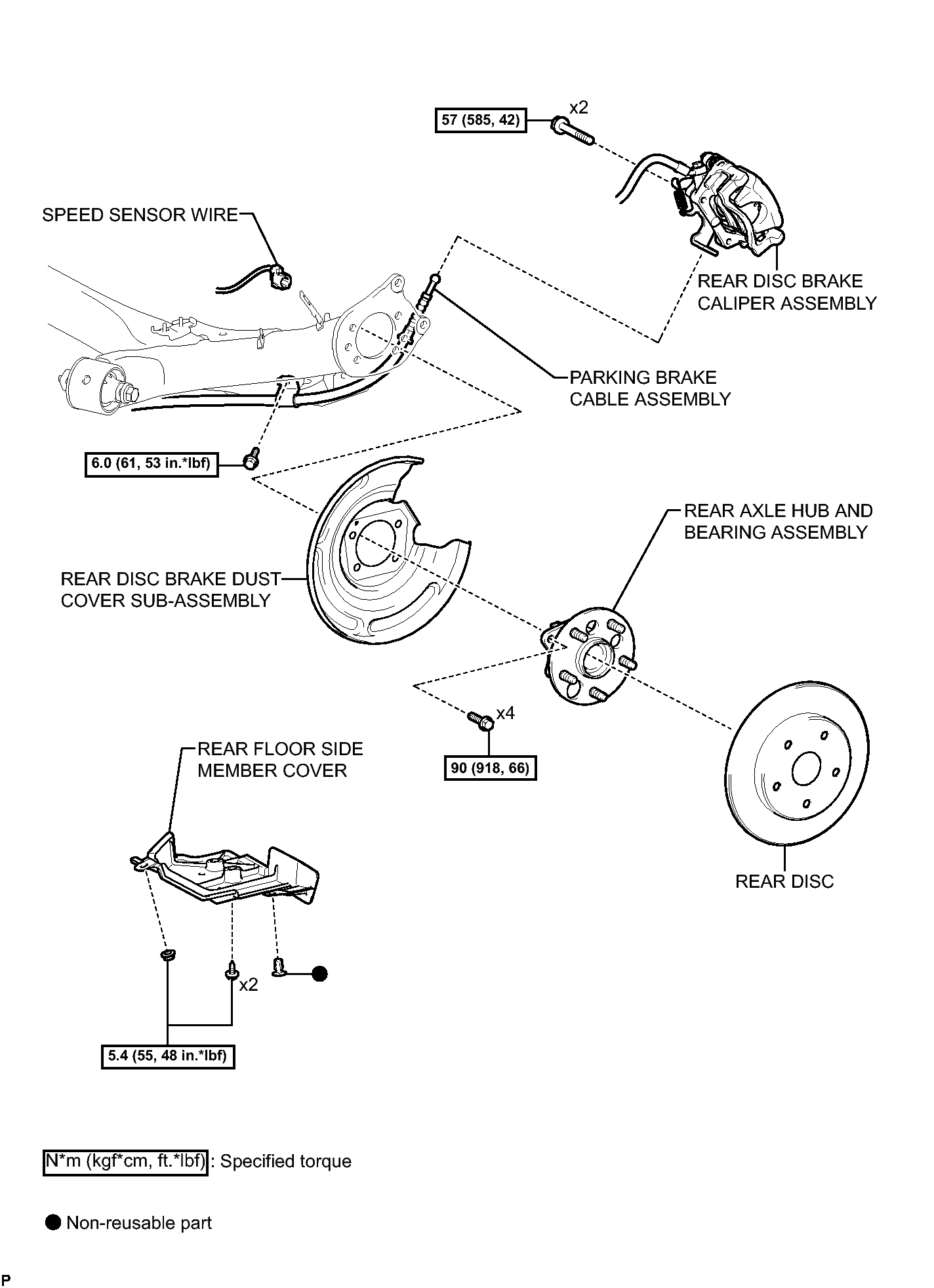

Fig 2: Identifying Rear Speed Sensor Replacement Components With Torque Specifications
GTY310452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
