Differential Case: Components: Illustration

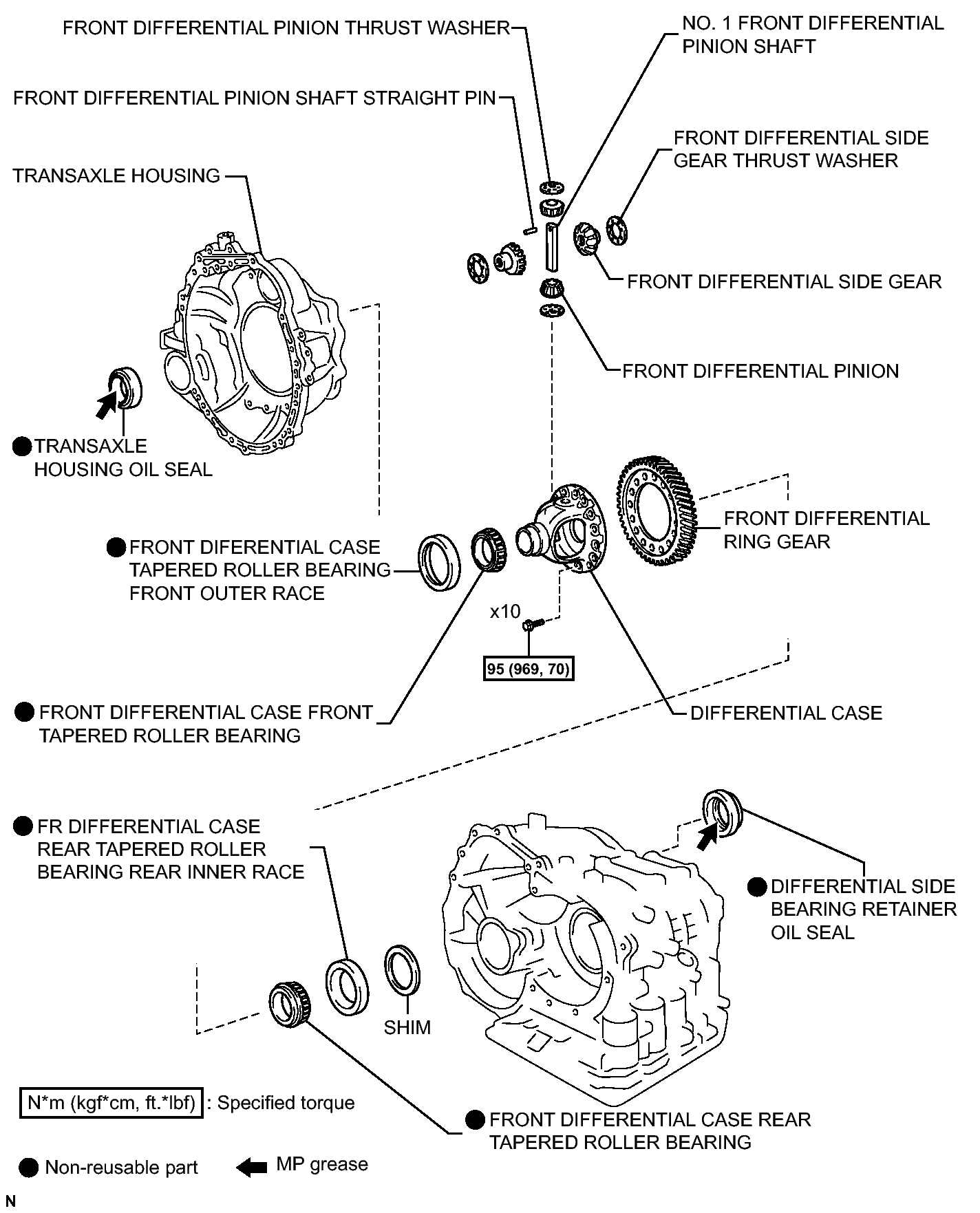

Fig 1: Identifying Differential Case Replacement Components With Torque Specifications
GTY312267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
