Reassembly

AIR CONDITIONING: AIR CONDITIONING PANEL: REASSEMBLY

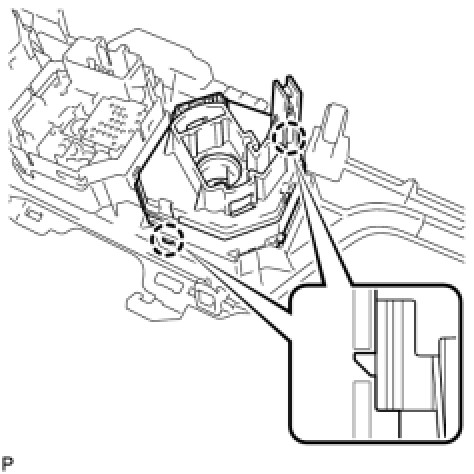

1. INSTALL NO. 3 HEATER CONTROL SUB-ASSEMBLY

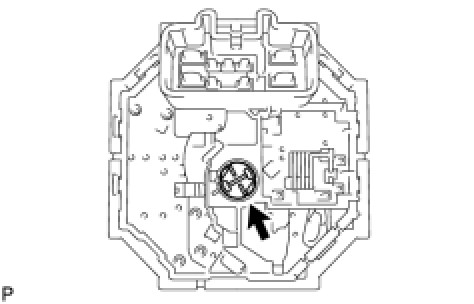

(a) Install the bulb.





(b) Engage the 2 claws and install the heater control.

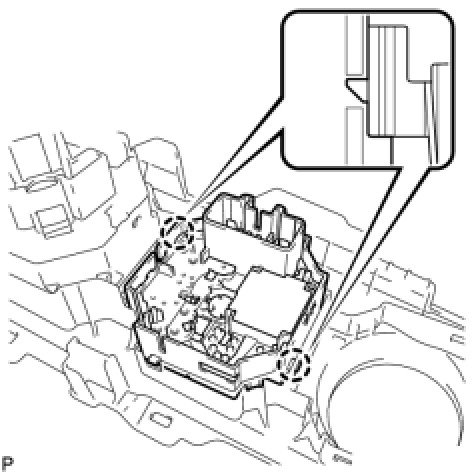

2. INSTALL HEATER CONTROL SUB-ASSEMBLY

(a) Install the bulb.





(b) Engage the 2 claws and install the heater control.

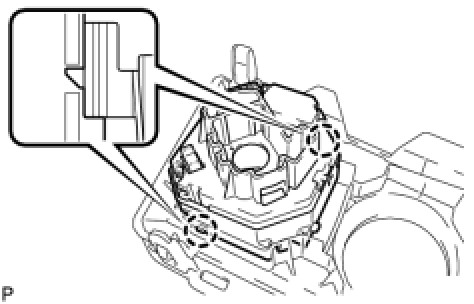

3. INSTALL HEATER CONTROL BASE SUB-ASSEMBLY

(a) Install the bulb.





(b) Engage the 2 claws and install the heater control base.
