Crankshaft Position Sensor: Testing and Inspection

2AZ-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSPECTION

1. INSPECT CRANKSHAFT POSITION SENSOR

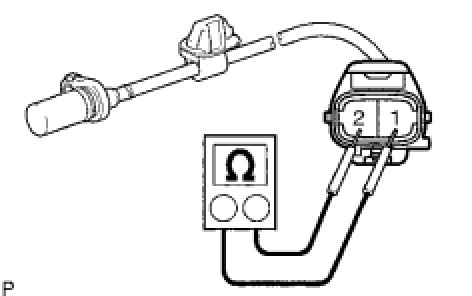

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





HINT
In the table above, the terms "Cold" and "Hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).

If the result is not as specified, replace the crankshaft position sensor.
