Removal

2AZ-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

1. DRAIN ENGINE COOLANT Service and Repair

2. REMOVE AIR CLEANER ASSEMBLY





(a) Disconnect the mass air flow meter connector.

(b) Separate the wire harness.

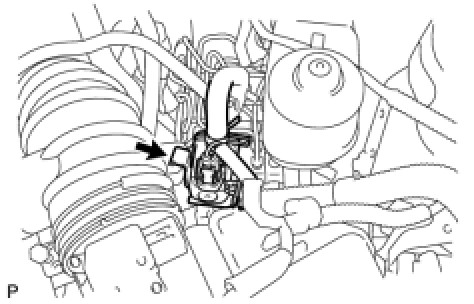

(c) Separate the No. 1 vacuum switching valve.





(d) Disconnect the ventilation hose.





(e) Separate the No. 2 fuel vapor feed hose.

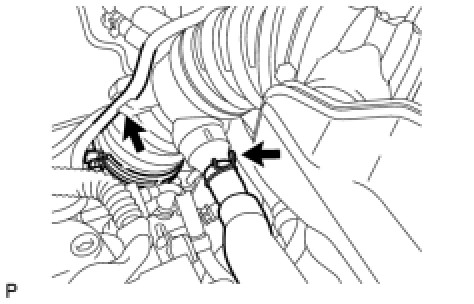

(f) Loosen the No. 1 air cleaner hose clamp, unlock the air cleaner assembly clamp and remove the air cleaner cap sub-assembly with No. 1 air cleaner hose.





(g) Remove the air cleaner filter element sub-assembly.

(h) Separate the wire harness.

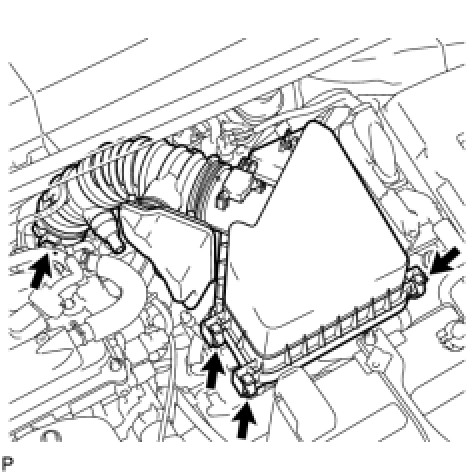

(i) Remove the 3 bolts and remove the air cleaner case sub-assembly.

3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR





(a) Disconnect the engine coolant temperature sensor connector.

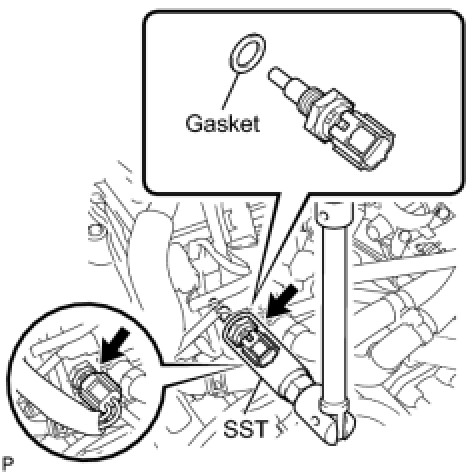

(b) Using SST, remove the engine coolant temperature sensor and gasket.

SST : 09817-33190
