Automatic Transmission/Transaxle





SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: SERVICE DATA

SPEED SENSOR





PARK / NEUTRAL POSITION SWITCH





TRANSMISSION WIRE





VALVE BODY ASSEMBLY

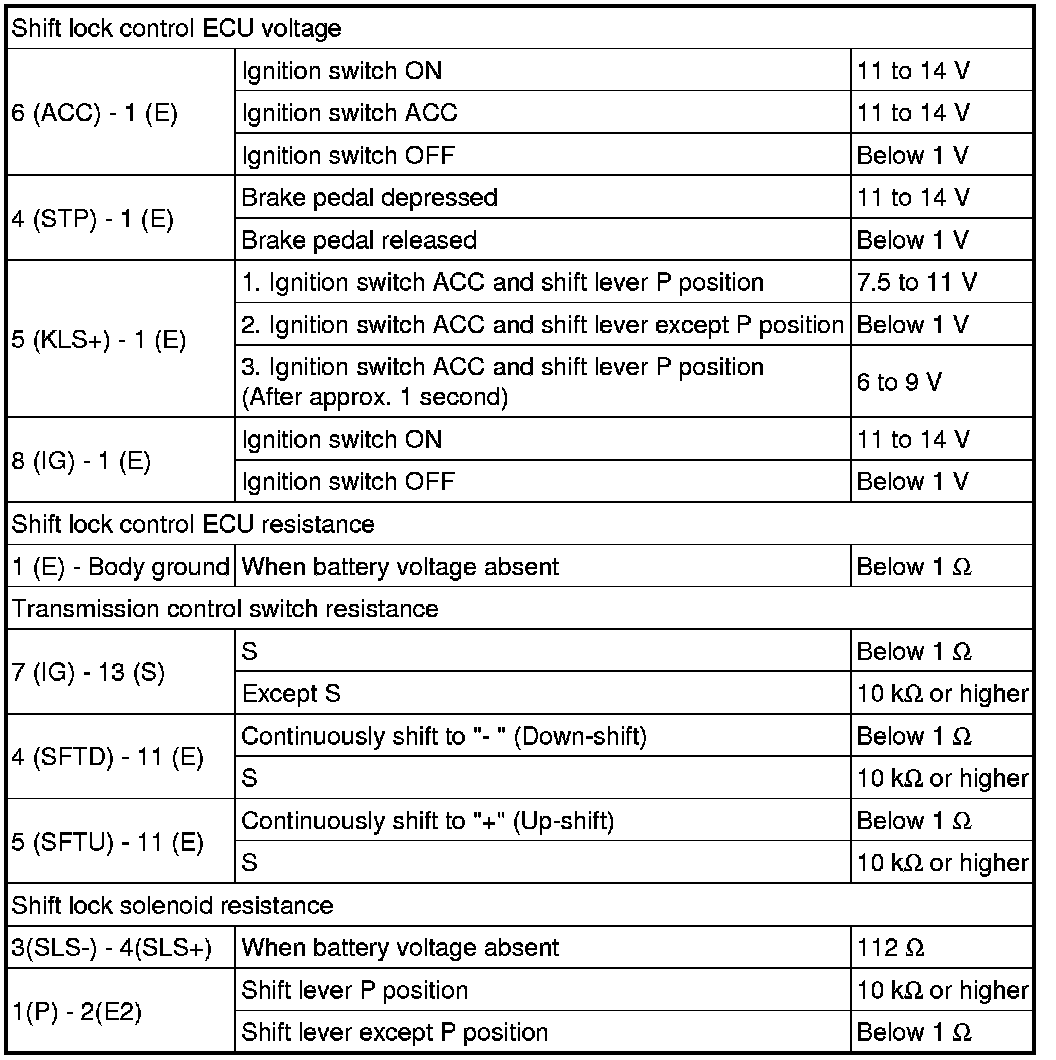

SHIFT LEVER
