Alignment

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

Front and Rear Wheel Alignment

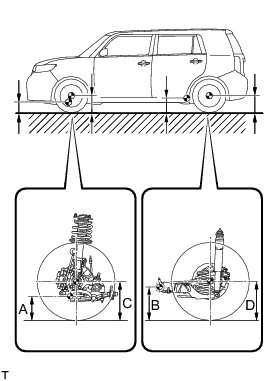

Vehicle Height Measuring Points

A
Ground clearance of No. 1 lower suspension arm bushing set bolt center

B
Ground clearance of rear axle carrier bushing set bolt center

C
Ground clearance of front wheel center

D
Ground clearance of rear wheel center
