Torque Specifications





SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

SPEED SENSOR





PARK / NEUTRAL POSITION SWITCH





TRANSMISSION WIRE





VALVE BODY ASSEMBLY





SHIFT LEVER





TRANSMISSION CONTROL CABLE ASSEMBLY





DIFFERENTIAL OIL SEAL

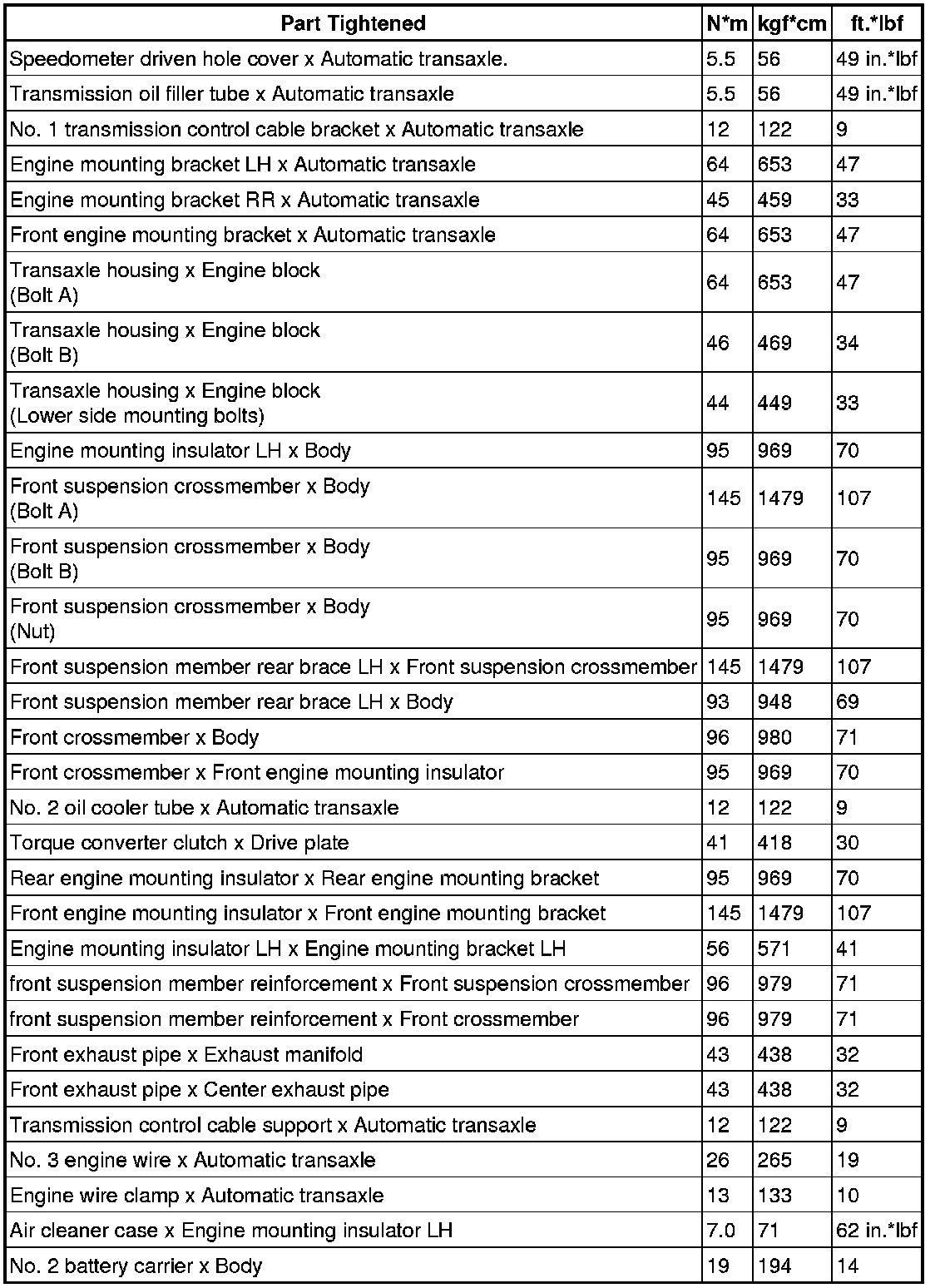

AUTOMATIC TRANSAXLE ASSEMBLY

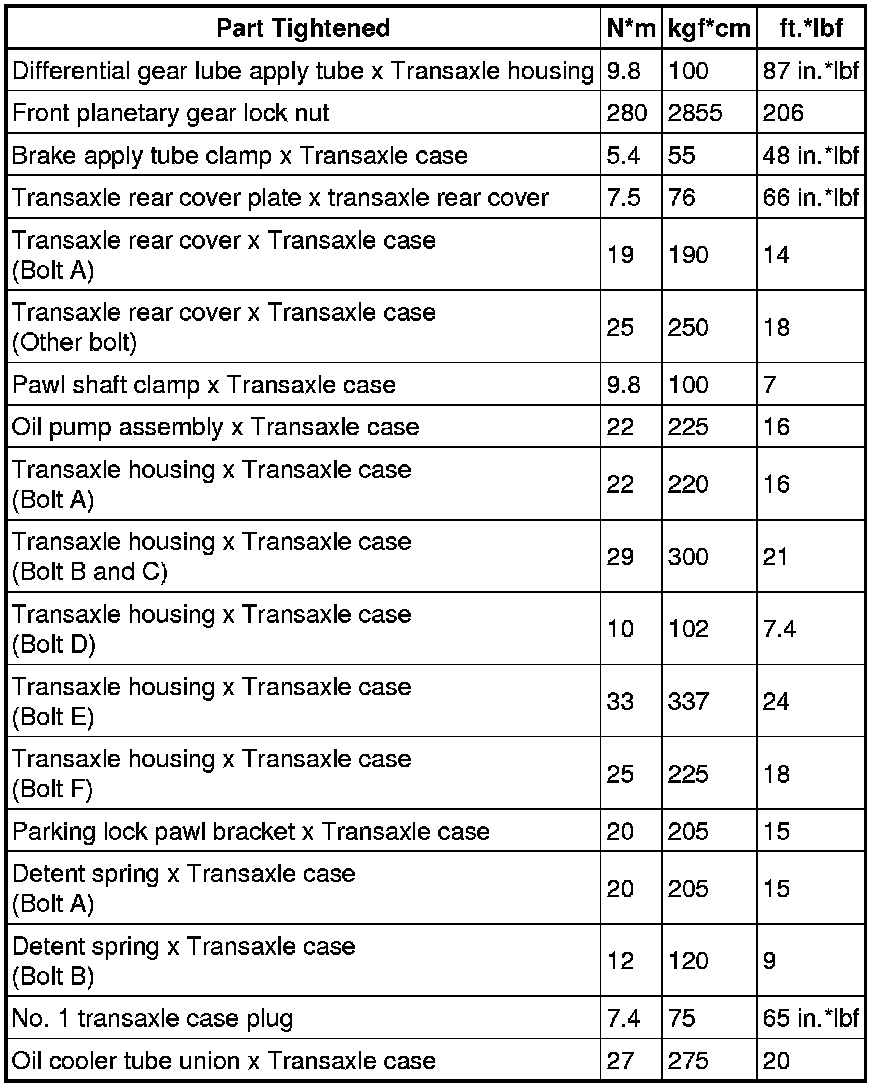

AUTOMATIC TRANSAXLE UNIT





OIL PUMP





UNDERDRIVE PLANETARY GEAR





DIFFERENTIAL CASE
