Park / Neutral Position Switch: Components: Illustration

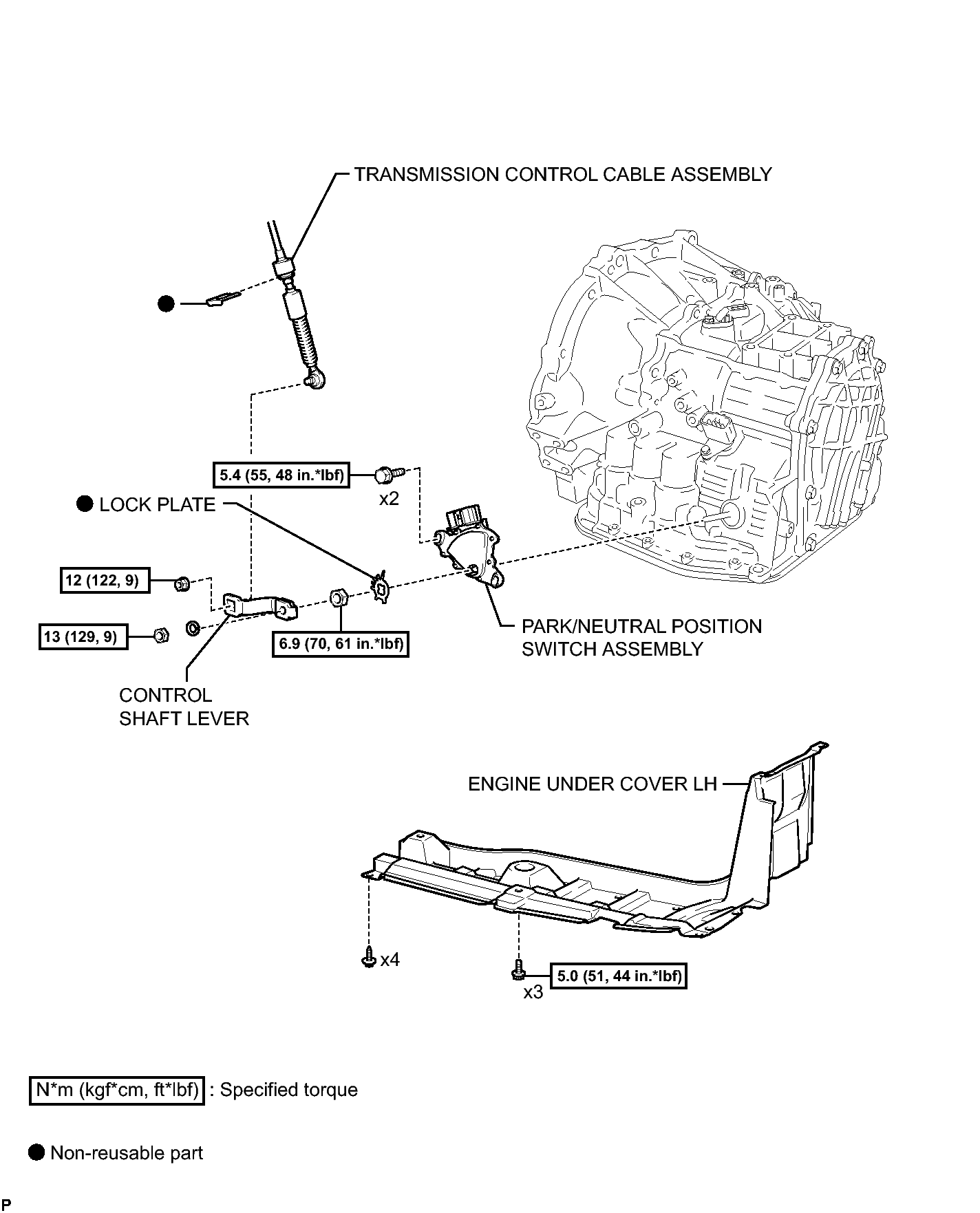

Fig 1: Identifying Park/Neutral Position Switch Replacement Components With Torque Specifications
GTY164537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
