Transaxle Rear Cover: Components: Illustration

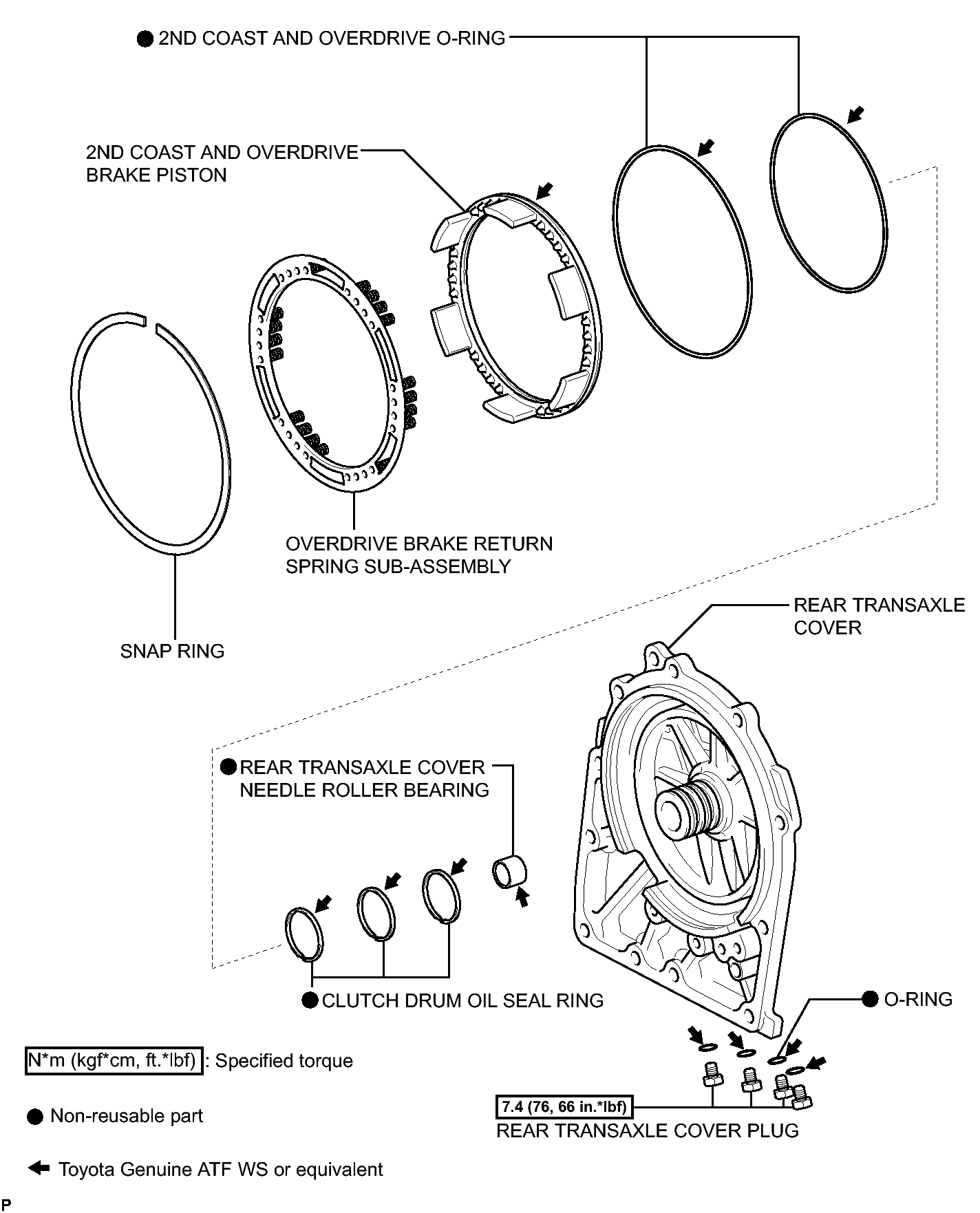

Fig 1: Exploded View Of Transaxle Rear Cover Replacement Components With Torque Specifications
GTY166215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
