Installation

DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSTALLATION

1. INSTALL WIRELESS DOOR LOCK BUZZER

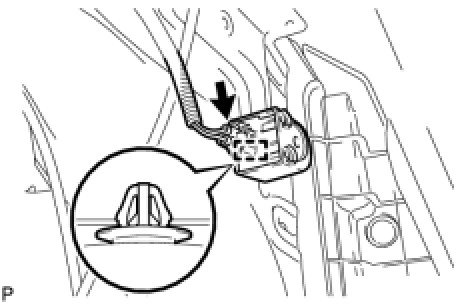

(a) Install the wireless door lock buzzer.

(b) Connect the connector.

2. INSTALL FRONT FENDER LINER LH

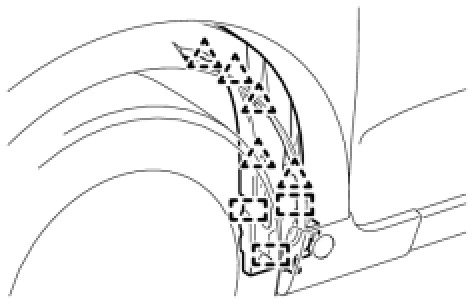

(a) Install the front fender liner with the 5 clips and 3 grommets.

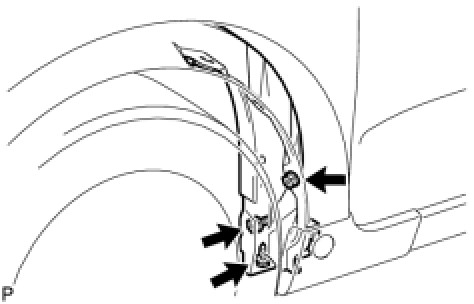

(b) Install the 3 screws.





3. INSTALL SIDE MUDGUARD Installation

4. INSTALL ROCKER PANEL MOULDING COVER Installation
