Installation

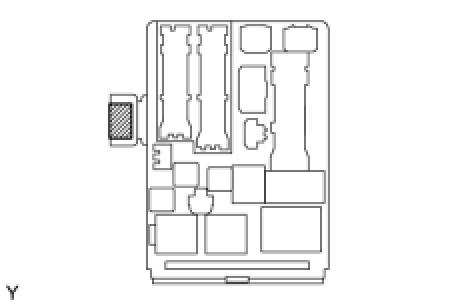

2ZR-FE STARTING: ACC CUT RELAY: INSTALLATION

1. INSTALL ACC CUT RELAY





(a) Install the ACC cut relay.

2. INSTALL INSTRUMENT PANEL BOX Installation
