2ZR-FE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CAMSHAFT POSITION SENSOR

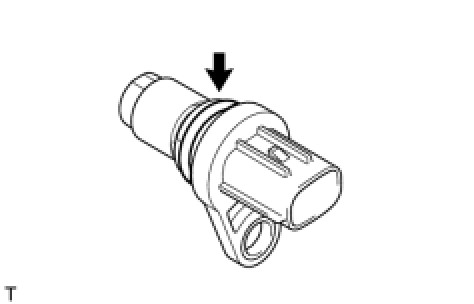

(a) Apply a light coat of engine oil to the O-ring on the camshaft position sensor.

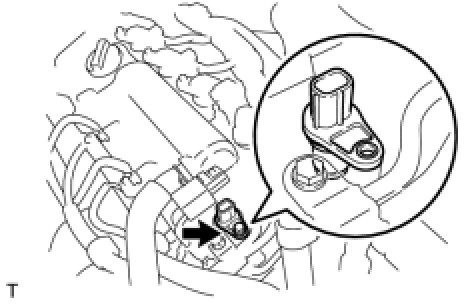

(b) Install the camshaft position sensor with the bolt (for intake camshaft side).





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

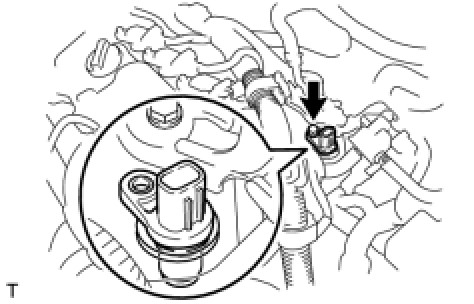

(c) Install the camshaft position sensor with the bolt (for exhaust camshaft side).





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

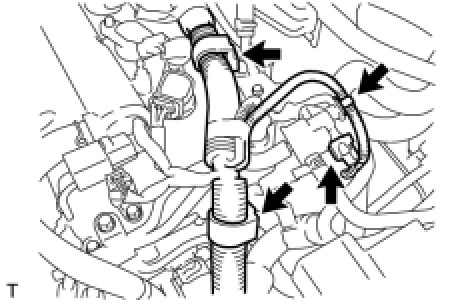

(d) Connect the 3 engine wire harness clamps and duty vacuum switching connector (for exhaust camshaft side).





2. INSPECT FOR OIL LEAK

3. INSTALL NO. 2 CYLINDER HEAD COVER Installation
