Crankshaft Position Sensor: Testing and Inspection

2ZR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSPECTION

1. INSPECT CRANKSHAFT POSITION SENSOR

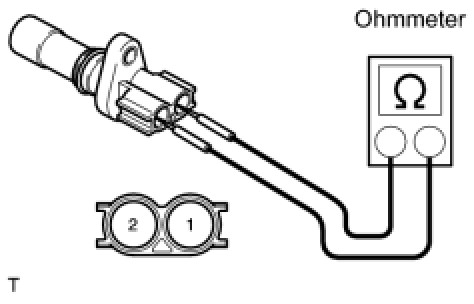

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





HINT
In the table above, the terms Cold and Hot refer to the temperature of the coils. Cold means approximately -10 to 50 °C (14 to 122 °F). Hot means approximately 50 to 100 °C (122 to 212 °F).

If the resistance is not as specified, replace the crankshaft position sensor.
