Removal

U341E AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: REMOVAL

1. REMOVE ENGINE UNDER COVER LH

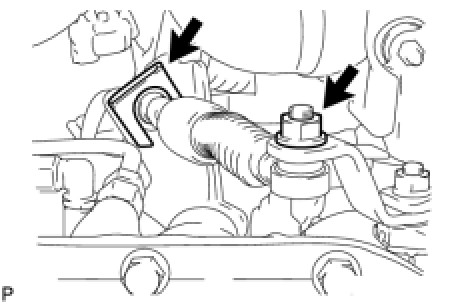

2. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Remove the nut and disconnect the transmission control cable assembly from the control shaft lever.





(b) Remove the clip and disconnect the transmission control cable assembly from the control cable bracket.

3. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Disconnect the connector from the park/neutral position switch assembly.

(b) Remove the nut, washer and control shaft lever.





(c) Pry out the lock plate and remove the manual valve shaft nut.





(d) Remove the 2 bolts and pull out the park/neutral position switch assembly.
