Installation

2ZR-FE STARTING: IGNITION SWITCH: INSTALLATION

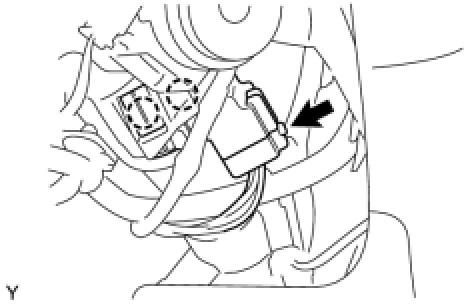

1. INSTALL IGNITION SWITCH ASSEMBLY





(a) Engage the 2 claws and install the ignition switch assembly.

(b) Connect the connector.

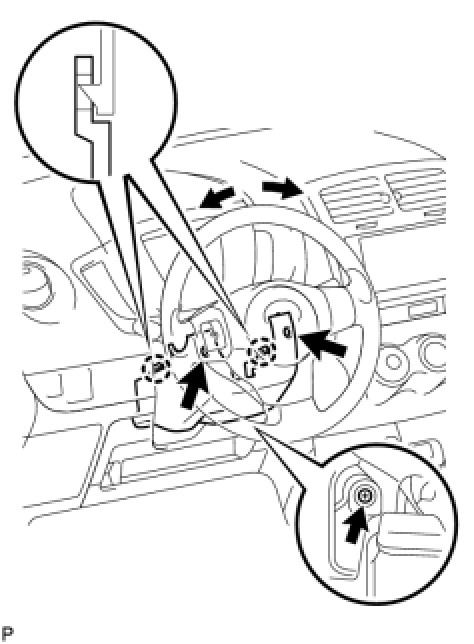

2. INSTALL STEERING COLUMN COVER





(a) Install the screw in the position indicated in the illustration.

(b) Turn the steering wheel to the left and install the screw in the position indicated in the illustration.

(c) Turn the steering wheel to the right, and install the screw in the position indicated in the illustration.
